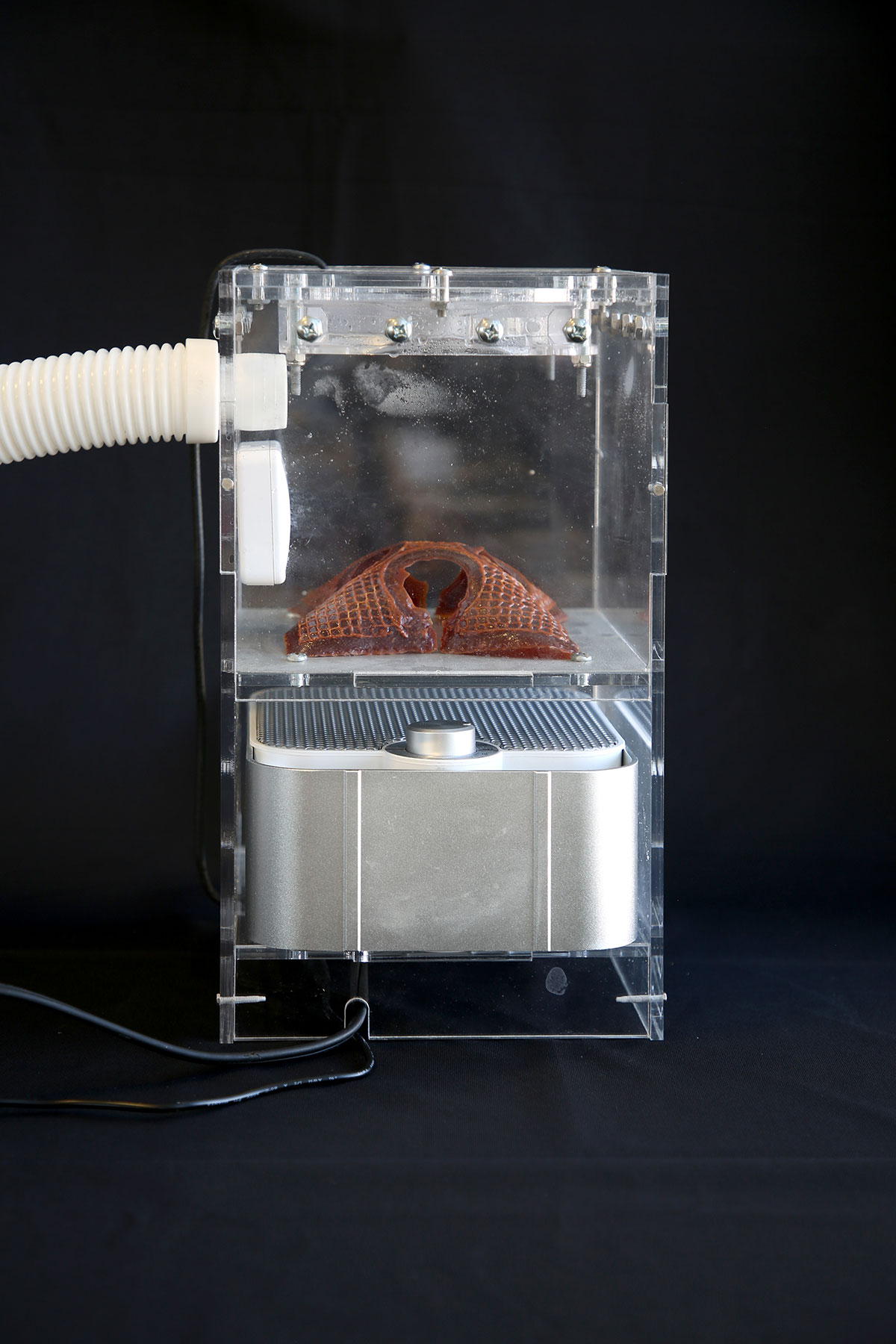

Figure I: Weather chamber that controls heat and humidity to test deformation of swatches.
![](https://freight.cargo.site/t/original/i/8ef424837c5895e85b8cde2b2fe0ff37226bfeb2c9cb3d4cb15bcb394d170e7f/3S7A4905.jpg)
![](https://freight.cargo.site/t/original/i/a18297b152144562d88b135c12754182611e7cdeb549bc9eabe520f55ac4c0bc/3S7A4910.jpg)
![](https://freight.cargo.site/t/original/i/8bbceedb2bcf384c15d9832004ffacef4979e6816b6222baa73433da2d8fc34d/3S7A4903.jpg)
![](https://freight.cargo.site/t/original/i/61f3b3adac644f21bb8b09979002ba20fda213551cecfe771fe9c7547e402068/3S7A4912.jpg)
![](https://freight.cargo.site/t/original/i/e2cf54a72f1e1193a0814a3e61adec71ec59efbda2707208973f744f252d0f92/3S7A4902.jpg)
![](https://freight.cargo.site/t/original/i/361ddf45a37978db12e1dc55d632cd93bfadfaf98189d71415c54fc6c99bd635/3S7A4913.jpg)
![](https://freight.cargo.site/t/original/i/78d455dc5b83e9bae99f81844ccdbd6f9a6b2b1bbbe98536b346a47b6c7adb44/3S7A4901.jpg)
![](https://freight.cargo.site/t/original/i/c73e07b4d4a288160771b679e8d4ceb1005ab67ec863b4a5cf1cb9ebc14aaca5/3S7A4916.jpg)
![](https://freight.cargo.site/t/original/i/a056481b228f0ab66ee908ddf868009caa940cc983420f6bf0ede08d2c2a118e/Swatch-Group-1_2_New-Dark.jpg)
![](https://freight.cargo.site/t/original/i/75b7b02388e07fd9a62ae13a0bd6b37590787fdda862e189363824c32f2dd72f/Swatch-Group-1_2_New-Light.jpg)
![](https://freight.cargo.site/t/original/i/6f554425ddda37797fbdebd41565444c2a32373944fcb5162ea04fb0c115c24a/Swatch-Group-1_2_Old-Dark.jpg)
![](https://freight.cargo.site/t/original/i/9ae94603c4af7d4b6e08c840a1011b49aa1824849f14a944d58f3a161b1d561e/Swatch-Group-1_2_Old-Light.jpg)
![](https://freight.cargo.site/t/original/i/1de6f74f3071ddffb5dc71977bf404d99eaaea716e18cc39e284c9a72d25fa7e/Swatch-Group-1_1_New-Dark.jpg)
![](https://freight.cargo.site/t/original/i/63498f374d7570143a7913b26c51eb1427357951813c5554a89b27ce2870af65/Swatch-Group-1_1_New-Light.jpg)
![](https://freight.cargo.site/t/original/i/85eb6cdb565a751a4d468a8a7e9d881402c47f15ae430faa0e65583c0bbead7c/Swatch-Group-1_1_Old-Dark.jpg)
![](https://freight.cargo.site/t/original/i/fbb17c499f0f0fc3a368bb336cce59d9ab8a341333ee3dcb78e04d10abc696f5/Swatch-Group-1_1_Old-Light.jpg)
![](https://freight.cargo.site/t/original/i/e9de992ff90ee3bc01fa2833ef68b4cd7bda4bc209c1b99132eedd3d5a04e9b2/Swatch-Group-1_4_New-Dark.jpg)
![](https://freight.cargo.site/t/original/i/13597d8e5521c9739f2eefd53f34642c8c9de48e1da18adc5c608395dbd59096/Swatch-Group-1_4_New-Light.jpg)
![](https://freight.cargo.site/t/original/i/2aed1bd58f3cc7b16d438601aee04d38ba13c8a631ac6e3133cb9a465a335338/Swatch-Group-1_4_Old-Dark.jpg)
![](https://freight.cargo.site/t/original/i/b7ebe07b1f46eaa5e46666b2815b06cfe4f0efdfd5a7bb7777477a8a524e3f92/Swatch-Group-1_4_Old-Light.jpg)
![](https://freight.cargo.site/t/original/i/65306bf128509ee7bc00f79f8e9370f1f228befe32e233a045db1e22aa2ea84c/Swatch-Group-1_3_New-Dark.jpg)
![](https://freight.cargo.site/t/original/i/e480353b5fbcd13d0693c7406b376a525af70d4168a0298acacb95a29ebf8329/Swatch-Group-1_3_New-Light.jpg)
![](https://freight.cargo.site/t/original/i/92bbf8aca49457fc5ca216db7c42a5f72a316cfcc70ae2e30459fdbb8972934c/Swatch-Group-1_3_Old-Dark.jpg)
![](https://freight.cargo.site/t/original/i/aee7eac682f72bac95a74e1b98d77041f536783c83077f2a0b99d8d2d91008e0/Swatch-Group-1_3_Old-Light.jpg)
![](https://freight.cargo.site/t/original/i/318f0ca49f340f6e7d7932769f1219ae7867ae0eee89926d61d7a52760230bb1/Swatch-Group-2_1_New-Dark.jpg)
![](https://freight.cargo.site/t/original/i/ba3e960df5f2b75f0a70be0502260c2cbab5cf4f2acdddc4f319bb09c21a75e4/Swatch-Group-2_1_New-Light.jpg)
![](https://freight.cargo.site/t/original/i/0e91051c77882b9e39b4f4bbf142b1ccf198f65df6c977c695e8ff429f9328b1/Swatch-Group-2_1_Old-Dark.jpg)
![](https://freight.cargo.site/t/original/i/1c4c246c96cbac5cf4ed3ae03eaf2db1c940988337c28026ffa8e9339d7671d6/Swatch-Group-2_1_Old-Light.jpg)
![](https://freight.cargo.site/t/original/i/3bc31593307ebfe32ccfba36349b6e4d6c916a749f0791c769a00e71992100e9/Swatch-Group-2_2_New-Dark.jpg)
![](https://freight.cargo.site/t/original/i/7c20d655ae6e4e82bb69776aad78df29f96f7100697f019548573cb6e47c8545/Swatch-Group-2_2_New-Light.jpg)
![](https://freight.cargo.site/t/original/i/35848e3e30b4d81a68117842c42978c6f5448140d69701862e9ff7e6194546c6/Swatch-Group-2_2_Old-Dark.jpg)
![](https://freight.cargo.site/t/original/i/2e0f6ca48bb442f804f3d4dcf5d5217884ba12ee50d77cf44ff7b2e3c27a1a00/Swatch-Group-2_2_Old-Light.jpg)
![](https://freight.cargo.site/t/original/i/08369f1757a7ad22cc22add3f21a7c01754a095fc0142bf04b89628e2c54b361/Swatch-Group-2_3_New-Dark.jpg)
![](https://freight.cargo.site/t/original/i/10abc728f30f4e6e638f86c42ee4ca4f3d3b71bd2f577a51a10afa50ab34a4e6/Swatch-Group-2_3_New-Light.jpg)
![](https://freight.cargo.site/t/original/i/480112539ad2d12213c5b5da57faec3ca4354adc9cfe6adc4704e2df931b93c2/Swatch-Group-2_3_Old-Dark.jpg)
![](https://freight.cargo.site/t/original/i/35a85b7e135289d1e00d2024944c13cdc7f9b329781fc04c05bb220b80f01dbd/Swatch-Group-2_3_Old-Light.jpg)
![](https://freight.cargo.site/t/original/i/0bfe4a8c0654e1997229f62483d1cb33f05cb63ee0dbe66a55ab6bb59dc3708d/Swatch-Group-2_4_New-Dark.jpg)
![](https://freight.cargo.site/t/original/i/9957ba69212f6d17ae78a67d5b8af2f039d287d758b4fcfe69d18311d454d46b/Swatch-Group-2_4_New-Light.jpg)
![](https://freight.cargo.site/t/original/i/5aeb00e95162304e434567151bb0e6ada148bde5283c4391fbfaed67eb30d6a3/Swatch-Group-2_4_Old-Dark.jpg)
![](https://freight.cargo.site/t/original/i/999b3083f616c618f54abb184c0920fb8d42d4fd06119b7940c03841b9458a5a/Swatch-Group-2_4_Old-Light.jpg)
![](https://freight.cargo.site/t/original/i/0e8869c86dd59e0e201b60d4958edaac722e04fe03ca4ad1a271debe20ae5093/Swatch-Group-6_1_New-Dark.jpg)
![](https://freight.cargo.site/t/original/i/14ef3b26e5fa838db1ac3a06c4b76351cb3759a47e8a91a23818961f25233c8a/Swatch-Group-6_1_New-Light.jpg)
![](https://freight.cargo.site/t/original/i/db12906d0d29c69499ff6f74a14d7e1598c55a4e5546d1cb8b17555224560196/Swatch-Group-6_1_Old-Dark.jpg)
![](https://freight.cargo.site/t/original/i/d92679e50b52c41e71fd9fd66e64251e689f7000f63e231ee0ac246e7632ac50/Swatch-Group-6_1_Old-Light.jpg)
![](https://freight.cargo.site/t/original/i/74b5d175b42facc36ae8056aa3a503d0fcd3e2823a9b0c2cc729df33ed059f04/Swatch-Group-6_2_New-Dark.jpg)
![](https://freight.cargo.site/t/original/i/c818b4caaf2b62ed032c47761deff24bdc5d596af746eb85f6bac24ca674b06e/Swatch-Group-6_2_New-Light.jpg)
![](https://freight.cargo.site/t/original/i/7c4f1ca1fb346a5c303a5bb504092294ee7dd6d405dac082fe149083a3160afb/Swatch-Group-6_2_Old-Dark.jpg)
![](https://freight.cargo.site/t/original/i/d39de6f29245137a9dba6bfdf9e85d828338e1c38f0de9b9963e2976e7ff1ba6/Swatch-Group-6_2_Old-Light.jpg)
![](https://freight.cargo.site/t/original/i/88a67c4dd65ae068530174a8c650c68a6b14b9a30fa4914a857df531fbeb5caf/Swatch-Group-6_3_New-Dark.jpg)
![](https://freight.cargo.site/t/original/i/a286d83237d7cf3bb012bca89c85c2b6f3e3e11e9cfd6c492e3dba3086673de5/Swatch-Group-6_3_New-Light.jpg)
![](https://freight.cargo.site/t/original/i/faa516f1409ef39334c85b1bcf170ff3071f0c47867d899032b2e8b15100edd5/Swatch-Group-6_3_Old-Dark.jpg)
![](https://freight.cargo.site/t/original/i/b54f0731dc1c5ac0e5a0ab5b0e29b672950a717470b20b27653f1dd8f66eb823/Swatch-Group-6_3_Old-Light.jpg)
![](https://freight.cargo.site/t/original/i/d7afd6856487a56b00308a829db315e5a041ed6bdaa2808d5439b9c4bf5bd34c/Swatch-Group-6_4_New-Dark.jpg)
![](https://freight.cargo.site/t/original/i/f7dfbd033d333b0aa737b5e004a096ceccfe009424b83acebd2bcccb39fe9a54/Swatch-Group-6_4_New-Light.jpg)
![](https://freight.cargo.site/t/original/i/c6ec5e1f40eb682aa0c07c2391b9945300910cd64b83bbabfd2f8517ef51d63e/Swatch-Group-6_4_Old-Dark.jpg)
![](https://freight.cargo.site/t/original/i/941cdb581b4f715c8b5be5cdfae3ea4adb08df7867d48a2c1ebab4b43e039383/Swatch-Group-6_4_Old-Light.jpg)
![](https://freight.cargo.site/t/original/i/b990439e25aa2f8de7387d20900abd5e24750af4a697a5b7a81f6b82eecf899f/Swatch-Group-3_2_New-Dark.jpg)
![](https://freight.cargo.site/t/original/i/af7af906730b4bffefd04cfe08b451d58b407bc5c53afc199c3cbcee55f52910/Swatch-Group-3_2_New-Light.jpg)
![](https://freight.cargo.site/t/original/i/ff2827258a368d6285a6148e9140f70a7723a711a7aca4f3c5be7f34517dccf9/Swatch-Group-3_2_Old-Dark.jpg)
![](https://freight.cargo.site/t/original/i/78903ecac5721afa90e3c3dda5a0fd2e55785c2359c31ce27f6cd58ed5d355cb/Swatch-Group-3_2_Old-Light.jpg)
![](https://freight.cargo.site/t/original/i/4898ff29e9e0dc9948b2454ddd4151a6003ac61dd591bcaf0a6f138337de7598/Swatch-Group-3_1_New-Dark.jpg)
![](https://freight.cargo.site/t/original/i/9cf575ad730e2e84140dd23f663279ae1a28e29674b944a9a31db08ea38b1957/Swatch-Group-3_1_New-Light.jpg)
![](https://freight.cargo.site/t/original/i/03d1e650127b7a1e872341dad7517d0a0489c9454234d8492378ed5c95b8f177/Swatch-Group-3_1_Old-Dark.jpg)
![](https://freight.cargo.site/t/original/i/f6b623c71568b65857ab9a2eec1d49bd01178986b7e5b588b98b7196c555f980/Swatch-Group-3_1_Old-Light.jpg)
![](https://freight.cargo.site/t/original/i/a228f8aab39b5bacac39b3d8e0b53248f77ffa7ce8f9588775b5960454f73728/Swatch-Group-3_3_New-Dark.jpg)
![](https://freight.cargo.site/t/original/i/2aa5b6e4192428c20f07057126d4ea61d91c3d0c66006b4f1001e9060ddb6464/Swatch-Group-3_3_New-Light.jpg)
![](https://freight.cargo.site/t/original/i/1afbdf5766d9c469df3adf628a06301749de489167028a3b607f8e8e14f3c3ec/Swatch-Group-3_3_Old-Dark.jpg)
![](https://freight.cargo.site/t/original/i/f51b7cc0626e7d12844eb23c276ad7ea2c51e897f57efdab67ae9e50d96d1b1a/Swatch-Group-3_3_Old-Light.jpg)
![](https://freight.cargo.site/t/original/i/1ed27ca408ffd6e6ce6c44269136351533c5efd985aaf767be7fc744ceb3bf19/Swatch-Group-3_4_New-Dark.jpg)
![](https://freight.cargo.site/t/original/i/b6370f499b0f5d8d06772977d541536dbec56c565732abf0b8fb3078363a3819/Swatch-Group-3_4_New-Light.jpg)
![](https://freight.cargo.site/t/original/i/45abbabbb3311d03985a6dddce825b6232f04a5a43abac8dc775946b9b239fb7/Swatch-Group-3_4_Old-Dark.jpg)
![](https://freight.cargo.site/t/original/i/83bf99887b409f4f93df27a582e9f712760f37878bd859a142f6bfaefd627790/Swatch-Group-3_4_Old-Light.jpg)
![](https://freight.cargo.site/t/original/i/e6f7b9aef02ada1f2d3e2449b045392141dada65d7db15412f68096126770973/Swatch-Group-4_2_New-Dark.jpg)
![](https://freight.cargo.site/t/original/i/96547778198a9eb5289b5bb0e8f7f3a4e5783a6a229c87bea6e81420429b6865/Swatch-Group-4_2_New-Light.jpg)
![](https://freight.cargo.site/t/original/i/0d89d3915f9c0a541c6e0a55ce2e4d98b28319da4e90efd100aec1cb18b89a86/Swatch-Group-4_2_Old-Dark.jpg)
![](https://freight.cargo.site/t/original/i/78aafde19cec26d1062e243e0ac43087934d751f96072ccea5e70c9af0667d0d/Swatch-Group-4_2_Old-Light.jpg)
![](https://freight.cargo.site/t/original/i/9772d40b018806a9f0e9e9ce73c9603a5416359aecca8528f59f7406dfc2d9cb/Swatch-Group-4_3_New-Dark.jpg)
![](https://freight.cargo.site/t/original/i/e9b2a4db90262daf21984b340e8a5a1c2eff3916a0460d0ed75b685705e74ac0/Swatch-Group-4_3_New-Light.jpg)
![](https://freight.cargo.site/t/original/i/b25bb78379988094519d16f068f050db538d5cdde0fe720f7c8272c05a0897de/Swatch-Group-4_3_Old-Dark.jpg)
![](https://freight.cargo.site/t/original/i/ea3f4928ccbd728e7c4802edd692a9069a522cc333a7986f41045aeab8948911/Swatch-Group-4_3_Old-Light.jpg)
![](https://freight.cargo.site/t/original/i/f19ebc001d19b87e5f2327d08568bfccde720a7ccf0cf08da1cc7fcfbddec4e5/Swatch-Group-4_4_New-Dark.jpg)
![](https://freight.cargo.site/t/original/i/4c1e83c3ff35fc652dccea5429c0a42aa24a8465ccd53e1930b6267e70e64aa1/Swatch-Group-4_4_New-Light.jpg)
![](https://freight.cargo.site/t/original/i/8b3925f2e33ac78421fede956d4ec28fb5fa9e5c849b5254621b800549aa1b3b/Swatch-Group-4_4_Old-Dark.jpg)
![](https://freight.cargo.site/t/original/i/c0912a2d4bdee11a9dded8a3ba7dabe7c46e42ec2317f237ed6f916cf3a42f13/Swatch-Group-4_4_Old-Light.jpg)
![](https://freight.cargo.site/t/original/i/790b51cddfb58879b02bc15174b7e2c59cad173601c42dace660fff8dfcd9b47/Swatch-Group-4_1_New-Dark.jpg)
![](https://freight.cargo.site/t/original/i/e4aec9401599c98f4e97d9fda4c9a57e9348a74d695d7934742cdd0200938ea3/Swatch-Group-4_1_New-Light.jpg)
![](https://freight.cargo.site/t/original/i/39f341c891753201dbf62f4debbc759a1daed6e0b2982bd63451629db09c1c62/Swatch-Group-4_1_Old-Dark.jpg)
![](https://freight.cargo.site/t/original/i/907978a83efbd3c7778e2f94e03d99ae6adbe1a76d38b568b289088e634e35be/Swatch-Group-4_1_Old-Light.jpg)
![](https://freight.cargo.site/t/original/i/2194473dad998555a159ba1003c0f1be0414836cd668855f1aa36be090361909/Swatch-Group-5_1_New-Dark.jpg)
![](https://freight.cargo.site/t/original/i/a8301d9cef5d7eaa659a4b701574ddb03428076df2cd12894af11f4a85bf1f7a/Swatch-Group-5_1_New-Light.jpg)
![](https://freight.cargo.site/t/original/i/3d1952251e7f97253747989cf70414535263072206486ea731882d41db68e217/Swatch-Group-5_2_Old-Dark.jpg)
![](https://freight.cargo.site/t/original/i/52fb3ef6053271e4bddae7bc08c0d364890540e962078e4ba3f17280b70d9c31/Swatch-Group-5_2_Old-Light.jpg)
![](https://freight.cargo.site/t/original/i/79762fc57ab3c31ee61eb9062693970d42ec24279a22e5c13b3cfa0db9961f4b/Swatch-Group-5_3_New-Dark.jpg)
![](https://freight.cargo.site/t/original/i/1b0a8a455f2f80577fc20e42e799aac95f9b6ff6baa2de29b1a1ba7de439112e/Swatch-Group-5_3_New-Light.jpg)
![](https://freight.cargo.site/t/original/i/3d1952251e7f97253747989cf70414535263072206486ea731882d41db68e217/Swatch-Group-5_2_Old-Dark.jpg)
![](https://freight.cargo.site/t/original/i/52fb3ef6053271e4bddae7bc08c0d364890540e962078e4ba3f17280b70d9c31/Swatch-Group-5_2_Old-Light.jpg)
![](https://freight.cargo.site/t/original/i/08fe2c29284015b39de57baafcb075d6a0a7beb78c0cc5c73301db71f67509f7/Swatch-Group-5_2_New-Dark.jpg)
![](https://freight.cargo.site/t/original/i/de7ac6da4f919089d382b729cf78d38d768f32c891fc588e022d5a189844598a/Swatch-Group-5_2_New-Light.jpg)
![](https://freight.cargo.site/t/original/i/88a7538d52b4fe3f57eff351ac900475b11d58566ef9e0d75bbcebf37e272c51/Swatch-Group-5_4_Old-Dark.jpg)
![](https://freight.cargo.site/t/original/i/c671ed9a6c9585ff99b4c8d0c5bdad2c702ba1804978fcf9c8b623bae8bdbd1e/Swatch-Group-5_4_Old-Light.jpg)
![](https://freight.cargo.site/t/original/i/3be255f5a5a5d42e43b202893f324b51ae20f880af0f2c51d48aed4b1aaeb961/Swatch-Group-5_4_New-Dark.jpg)
![](https://freight.cargo.site/t/original/i/8fb5c7ee2e498f8c7a282b53657adbc5738216216c1a6362a17e3469eca17343/Swatch-Group-5_4_New-Light.jpg)
![](https://freight.cargo.site/t/original/i/88a7538d52b4fe3f57eff351ac900475b11d58566ef9e0d75bbcebf37e272c51/Swatch-Group-5_4_Old-Dark.jpg)
![](https://freight.cargo.site/t/original/i/c671ed9a6c9585ff99b4c8d0c5bdad2c702ba1804978fcf9c8b623bae8bdbd1e/Swatch-Group-5_4_Old-Light.jpg)

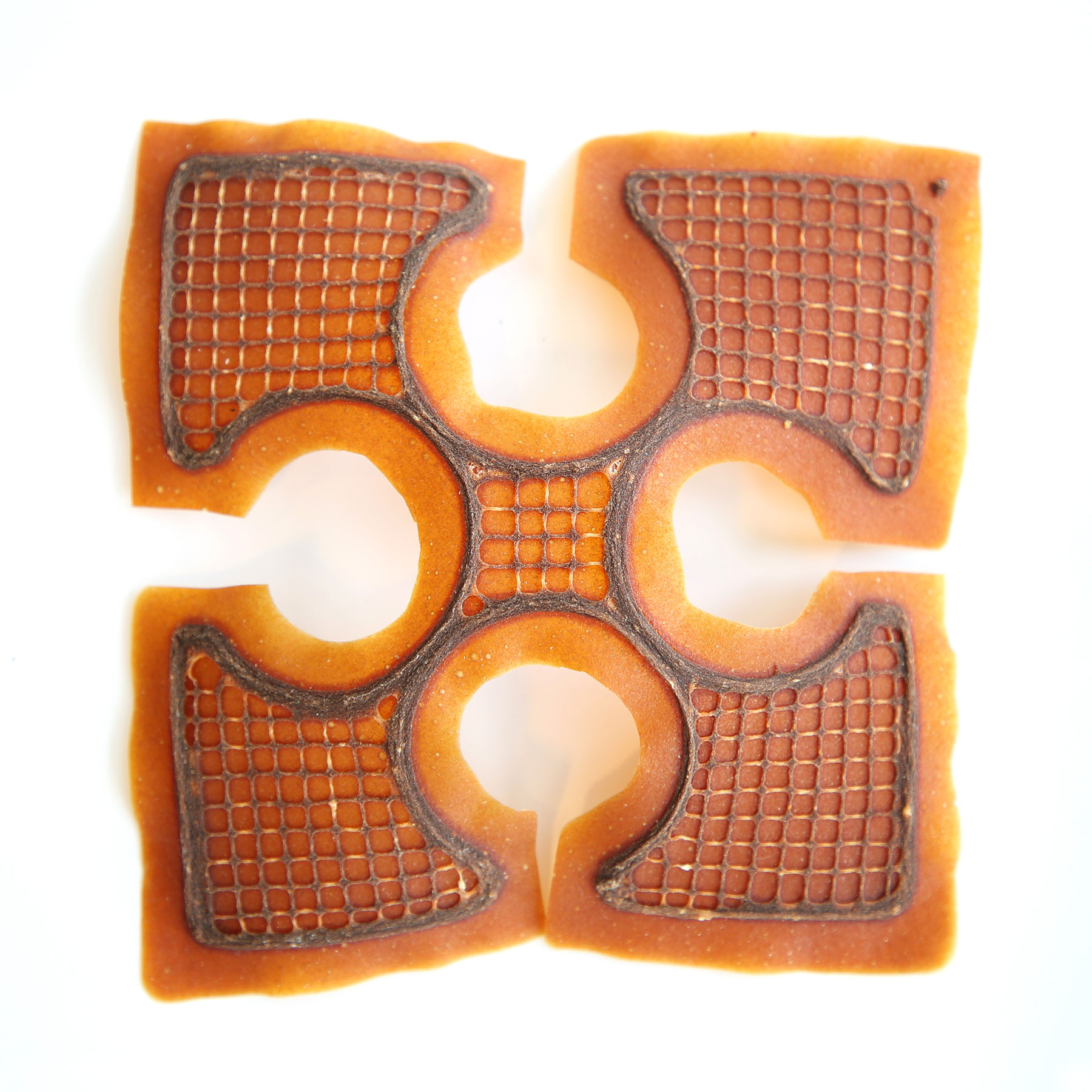

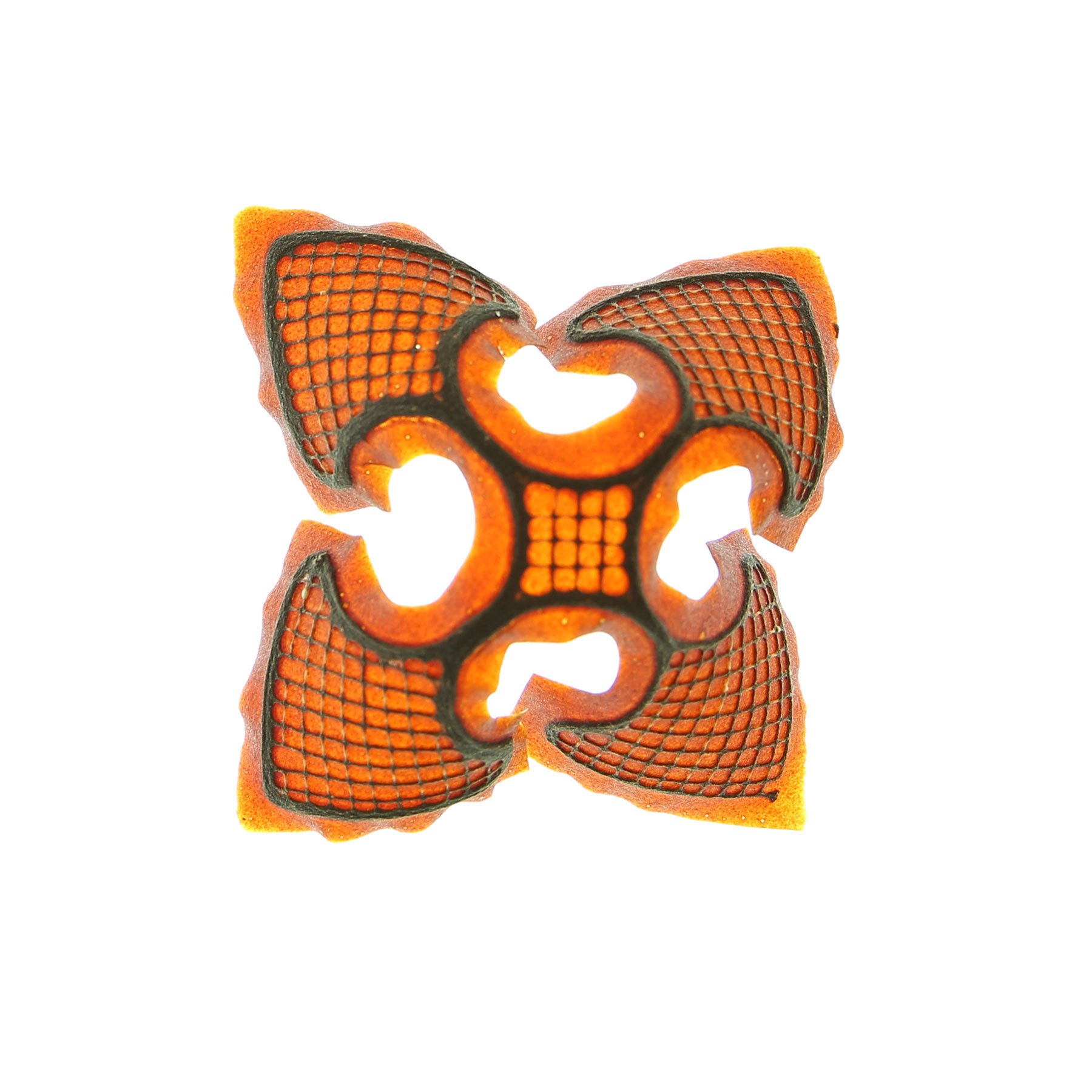

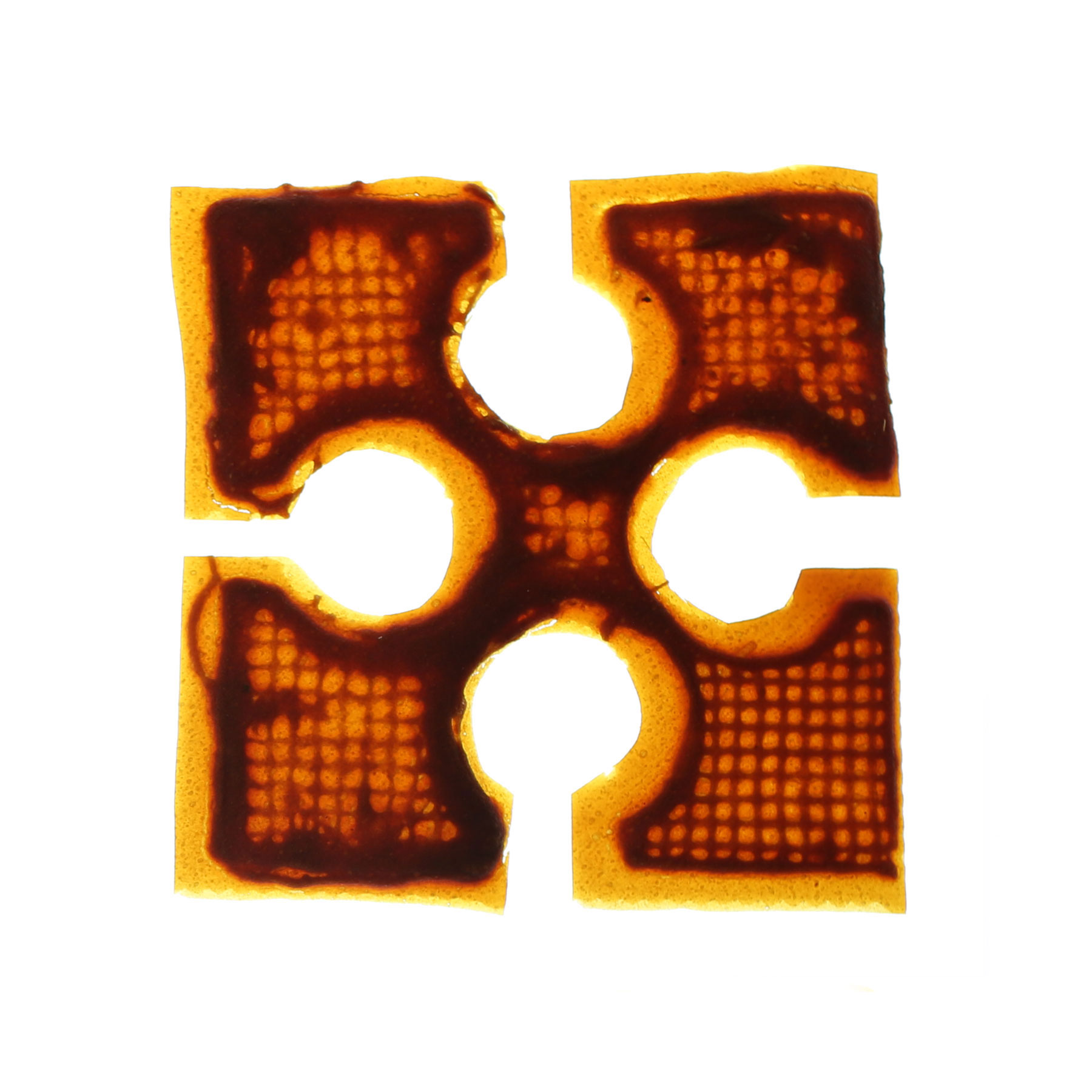

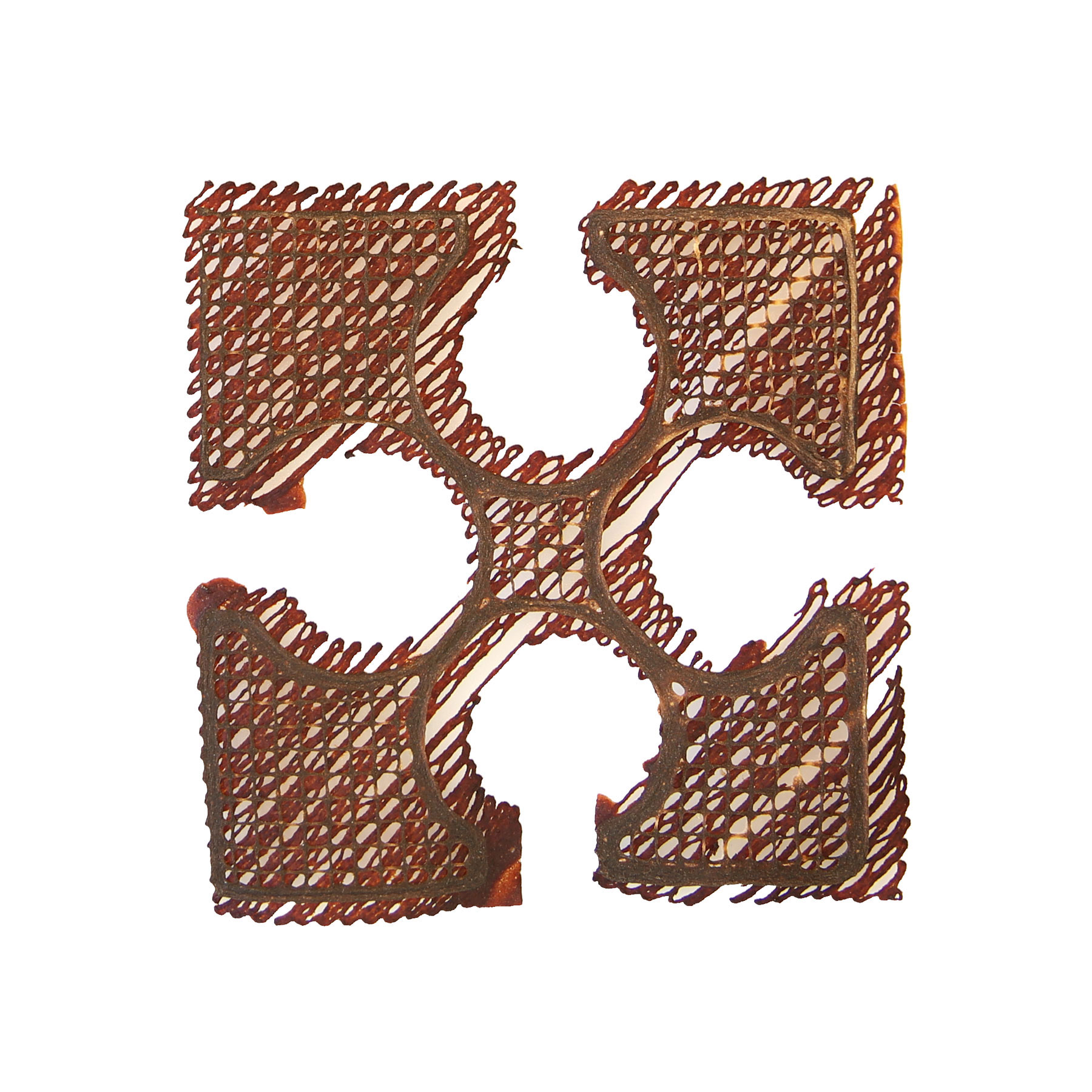

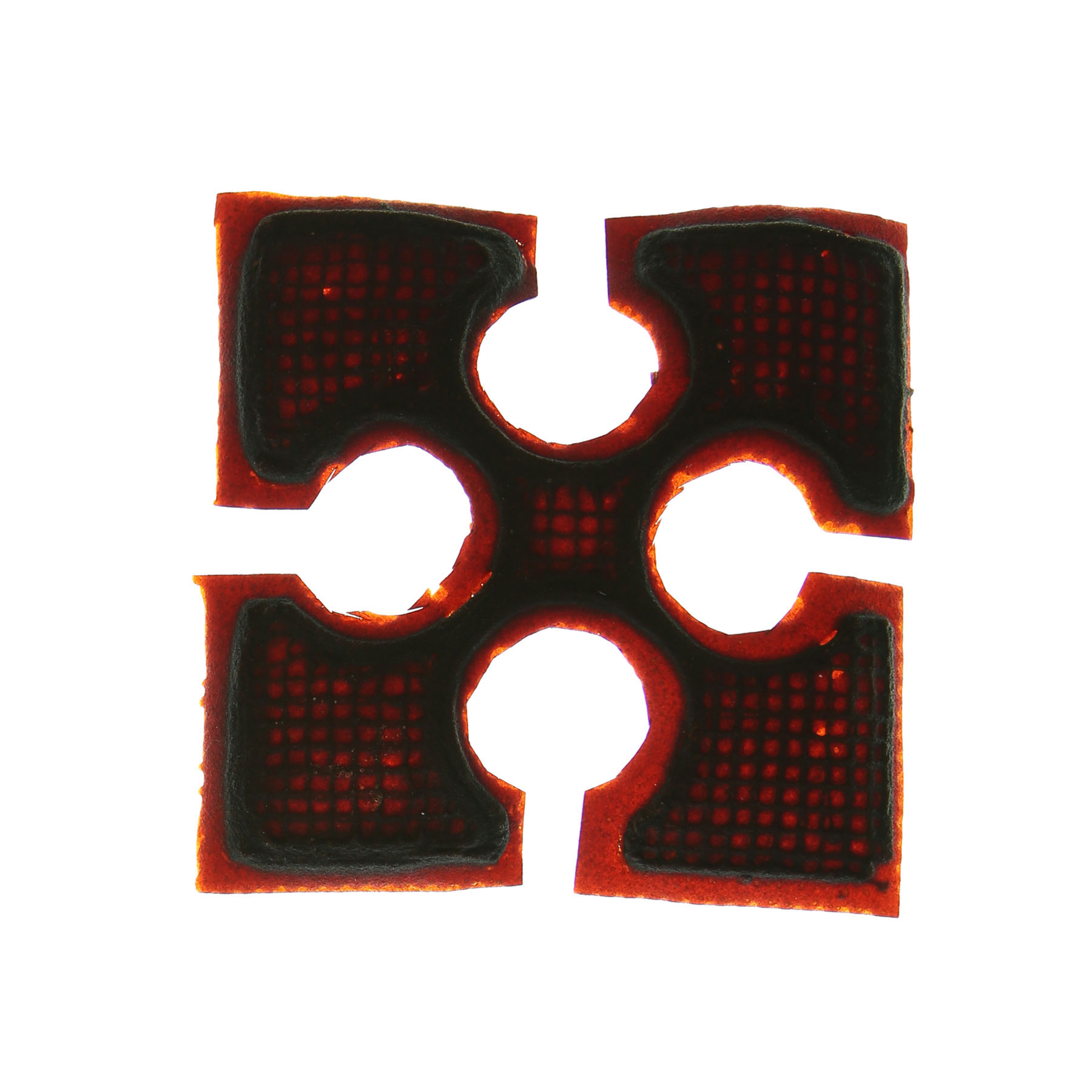

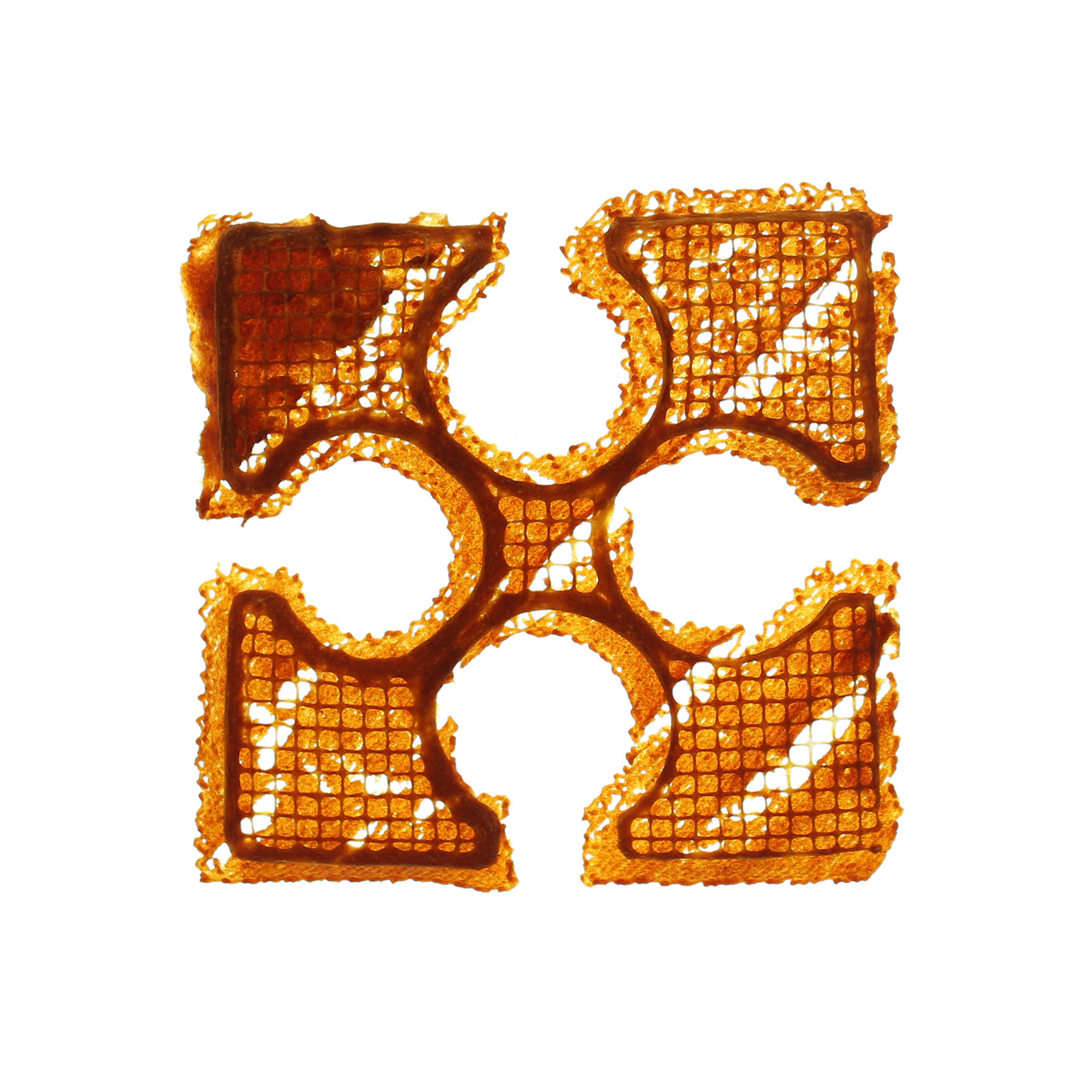

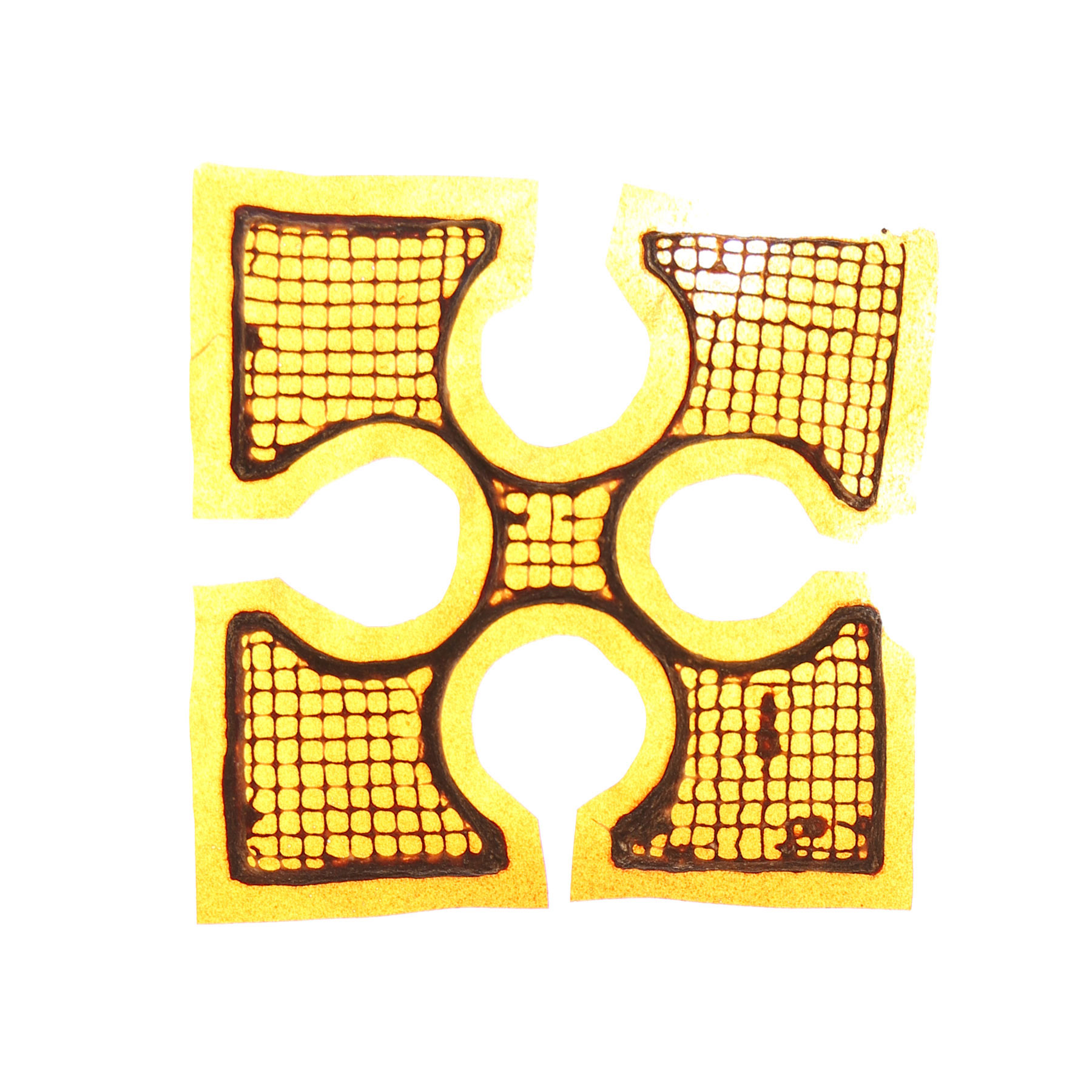

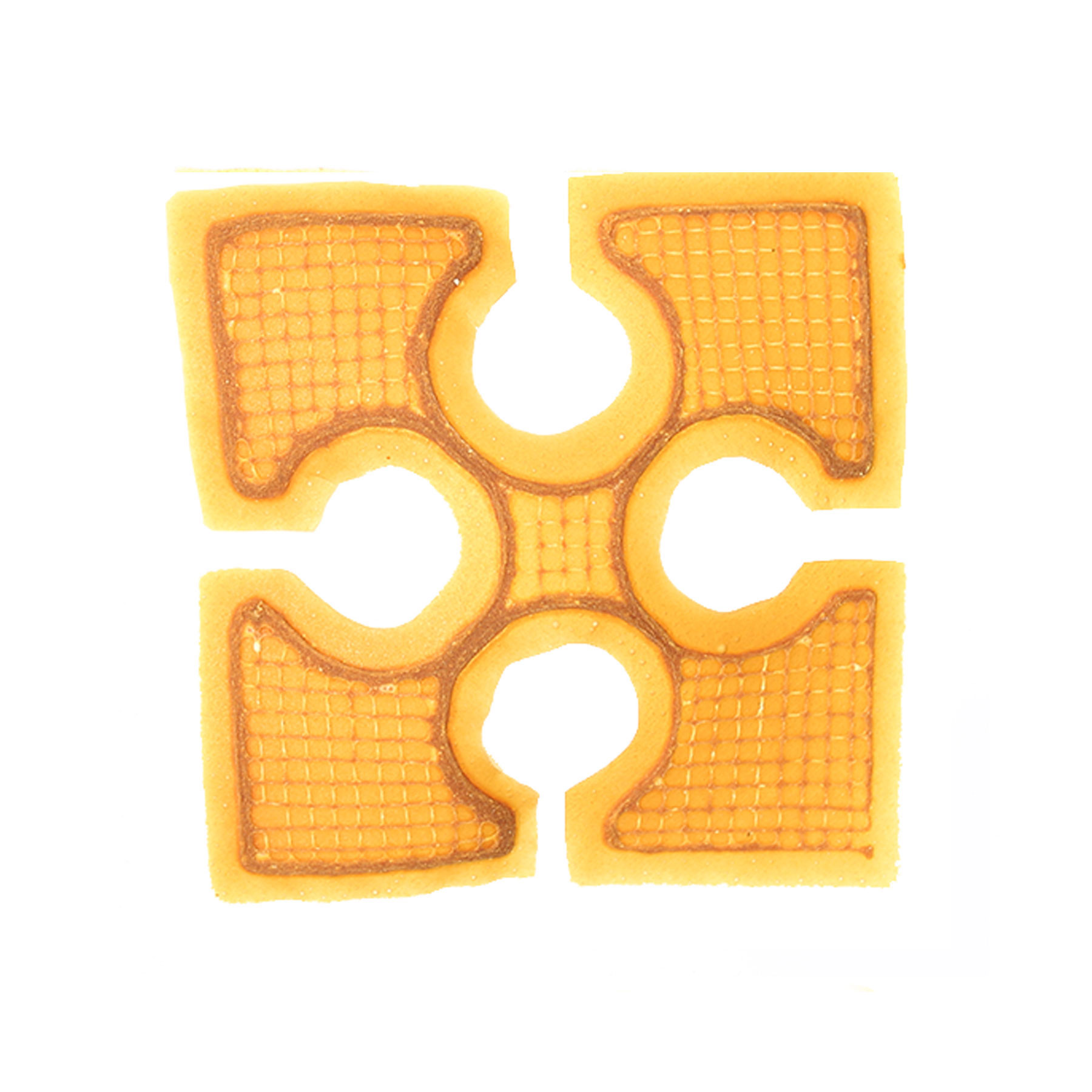

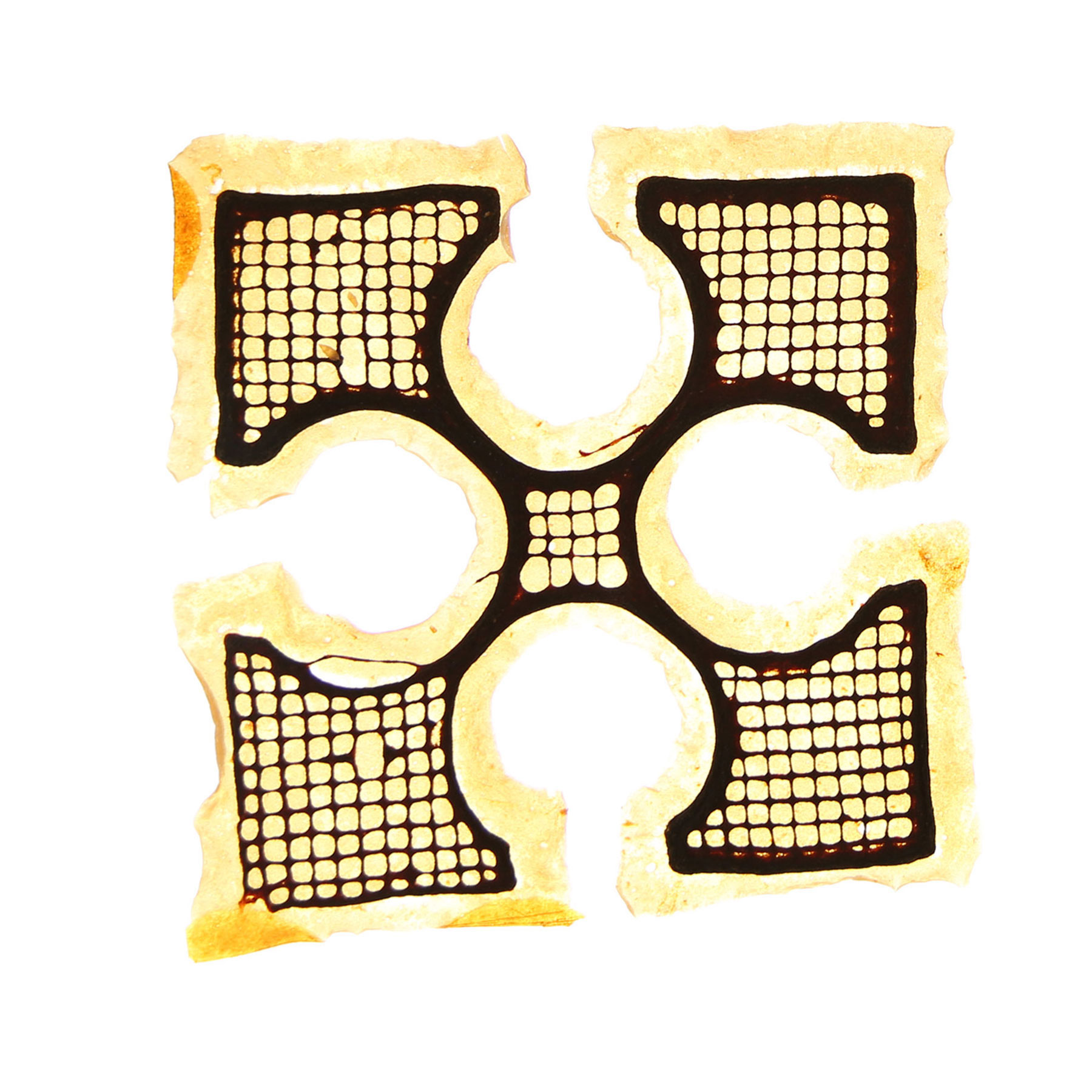

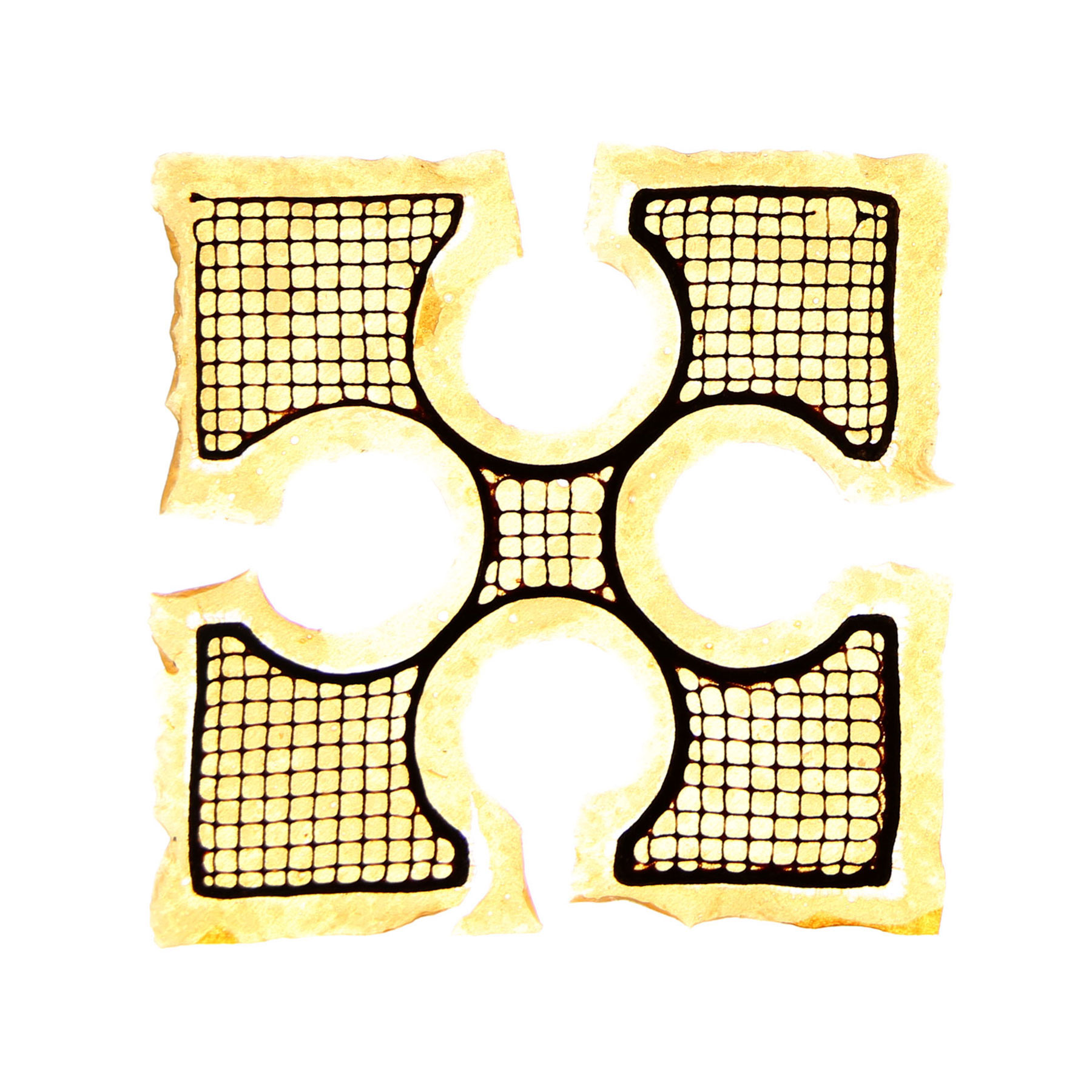

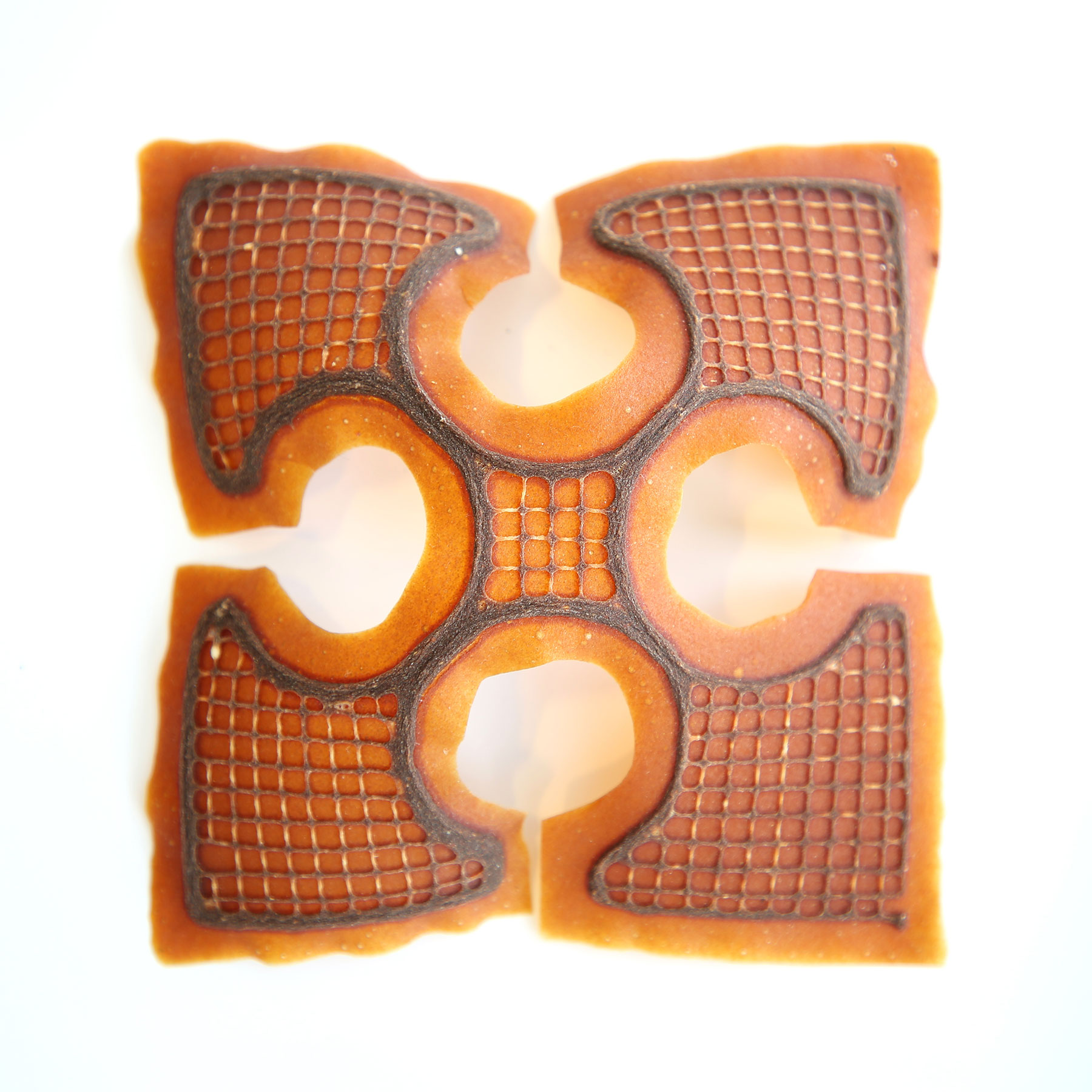

Figure II: Comparison of the deformation of 7 X swatch prints aged over 1 year with various pectin/chitosan and cellulose compositions.
![](https://freight.cargo.site/t/original/i/5d766e76e5b924e394d728c63182a2a4981a178e197f8af56b30a7aa22fbe8aa/Swatches_Compiled_1.jpg)
![](https://freight.cargo.site/t/original/i/c6a7380d222839a8f053a423e07bb53063d84db6af447300f4b89bfb1636b2f8/Swatches_Compiled.jpg)
Figure III: Comparison of the deformation of hexagonal swatch prints with various pectin/chitosan and cellulose compositions.
![](https://freight.cargo.site/t/original/i/0b38576b4da103598d61febfb40373bdc94a0bc6f38881d12a577162f8f4d8cd/200312_Layered-Print---Circle-Chart_Material_Amount-2-37.jpg)
![](https://freight.cargo.site/t/original/i/ea866425bf39130bad4f134a0d58e290f96eb22a8cc49f7d42e3a9dc0ccdb38e/200312_Layered-Print---Circle-Chart_Material_Amount-2-38.jpg)
![](https://freight.cargo.site/t/original/i/5c395f87d3ef7f6d8af3cd9a3d62a721ab09c9f9070a15ea97b93da6118fddeb/200312_Layered-Print---Circle-Chart_Material_Amount-2-39.jpg)
![](https://freight.cargo.site/t/original/i/3ee8f307ec462245b3e51c4bff34c5e0b885da164bed13e615d21987c4722620/200312_Layered-Print---Circle-Chart_Material_Amount-2-40.jpg)
![](https://freight.cargo.site/t/original/i/a006e264466f6b8d8f0d33453c5b3d2c35e733990369ed0642d35a0095dd7fbf/200312_Layered-Print---Circle-Chart_Material_Amount-2-41.jpg)
![](https://freight.cargo.site/t/original/i/5373340a24297e093cc0312de0a85bfc51ed650f4698779ad860a4263ee770cf/200312_Layered-Print---Circle-Chart_Material_Amount-2-42.jpg)
![](https://freight.cargo.site/t/original/i/118b54f1607aad5e506932a4563a93ed7d5abefb4eb2a37d462dcf63ce3cf35a/200312_Layered-Print---Circle-Chart_Material_Amount-2-43.jpg)
![](https://freight.cargo.site/t/original/i/317bb9919519d5d9e6e9324bab64c10b3328ab1fed899e540d804482c096f284/200312_Layered-Print---Circle-Chart_Material_Cost-2-37.jpg)
![](https://freight.cargo.site/t/original/i/ba157c549d38bbef3190f61236000f41f434952a40095faba730e279ce309ed0/200312_Layered-Print---Circle-Chart_Material_Cost-2-38.jpg)
![](https://freight.cargo.site/t/original/i/0f460c29b7daf94f94246b4853d7dc06ede7b88340ec712602cfcaa943870c8f/200312_Layered-Print---Circle-Chart_Material_Cost-2-39.jpg)
![](https://freight.cargo.site/t/original/i/4c2681bce71d1ebfb7a467602b389ef243537f862167db3f13a7e7933d331a2f/200312_Layered-Print---Circle-Chart_Material_Cost-2-40.jpg)
![](https://freight.cargo.site/t/original/i/56eeeb4609e08fc6b2e6539bb984c3888dd4f187a2eb09b8cd7aba311c7ac00c/200312_Layered-Print---Circle-Chart_Material_Cost-2-41.jpg)
![](https://freight.cargo.site/t/original/i/d5e50a947e037affb792747527057e965ed01b8554a360ec7ff27bd7c84a4d4b/200312_Layered-Print---Circle-Chart_Material_Cost-2-42.jpg)
![](https://freight.cargo.site/t/original/i/d85b78663e705d2908f3f1ec8a9efa0cca28718ba7fe878781dda67336db016b/200312_Layered-Print---Circle-Chart_Material_Cost-2-43.jpg)

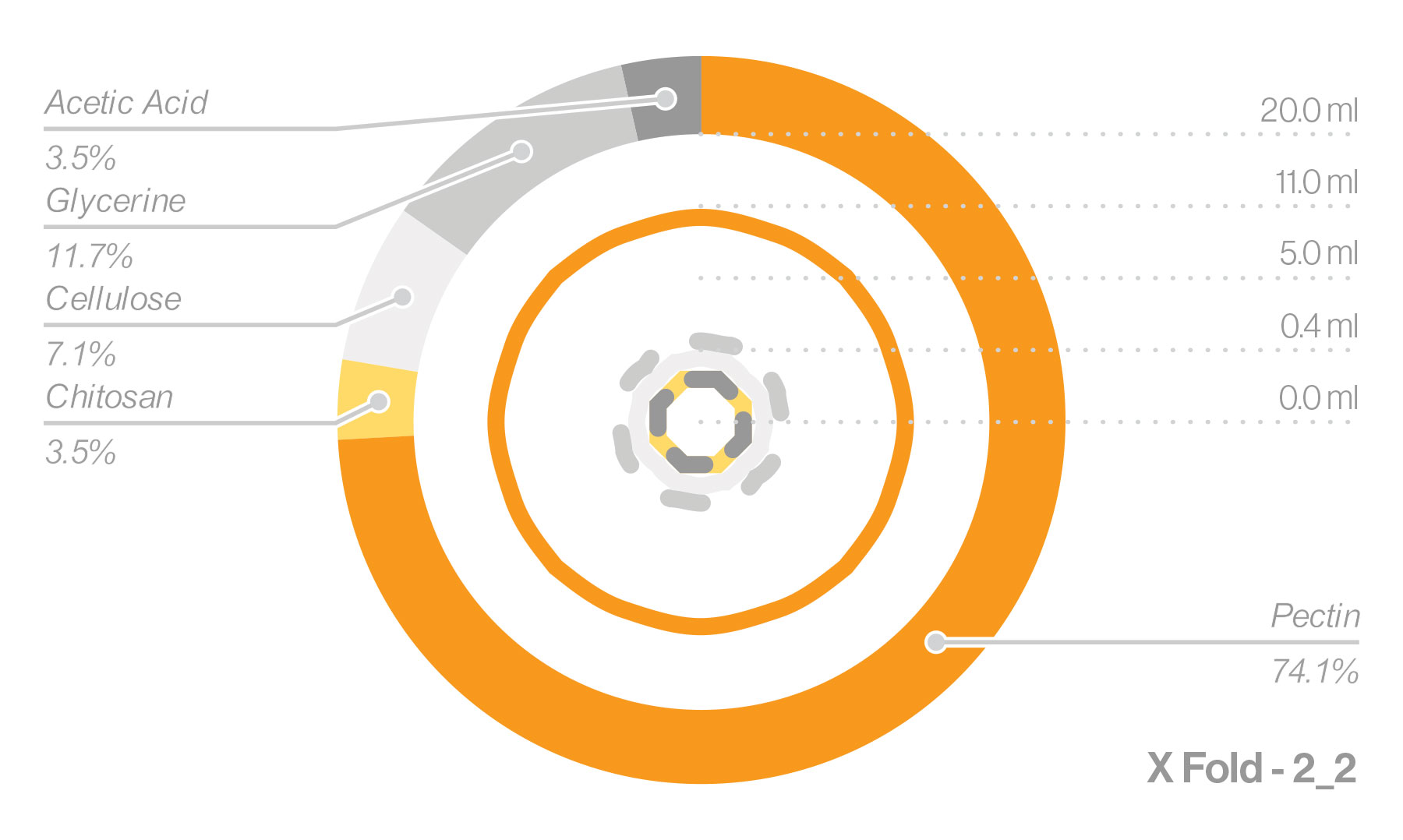

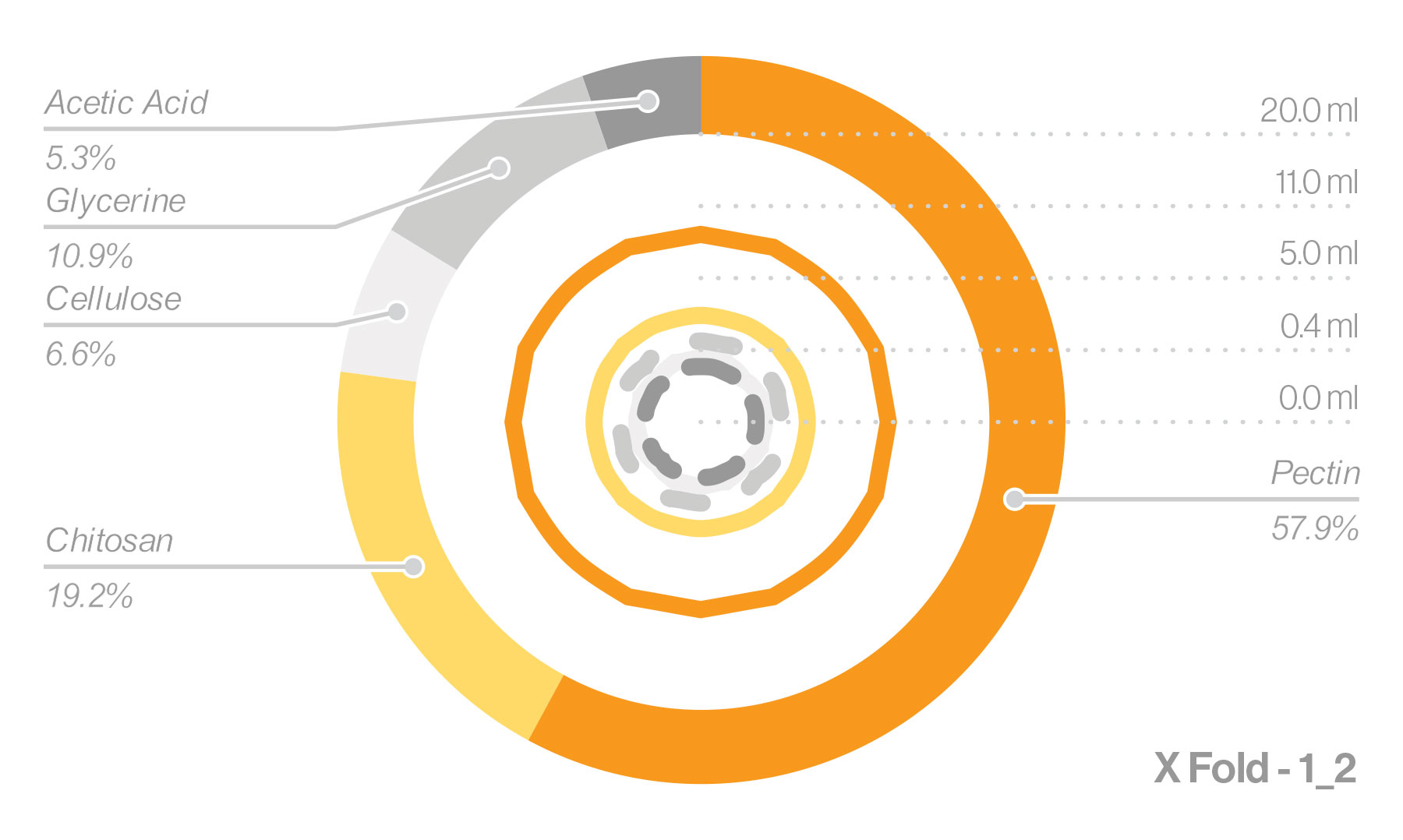

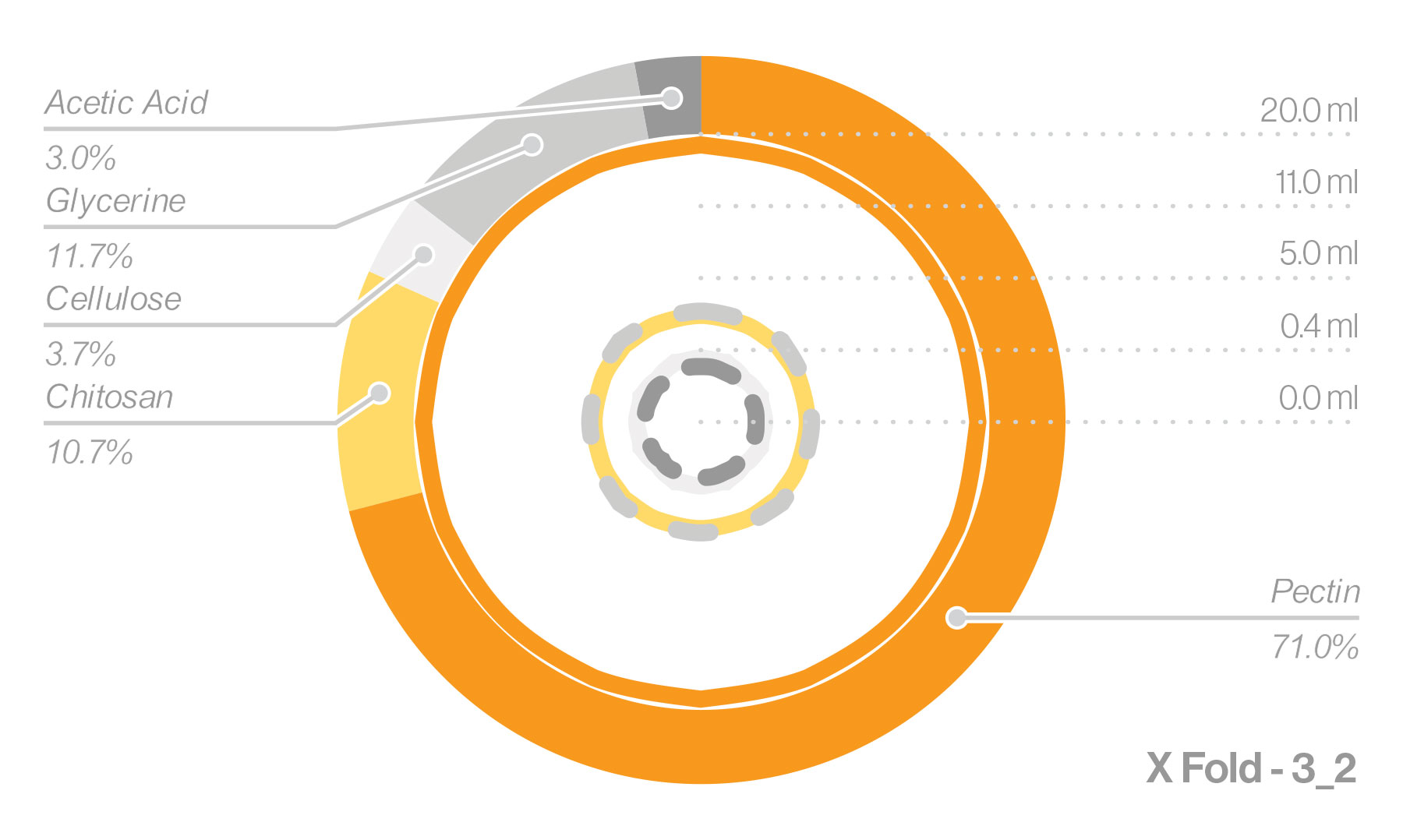

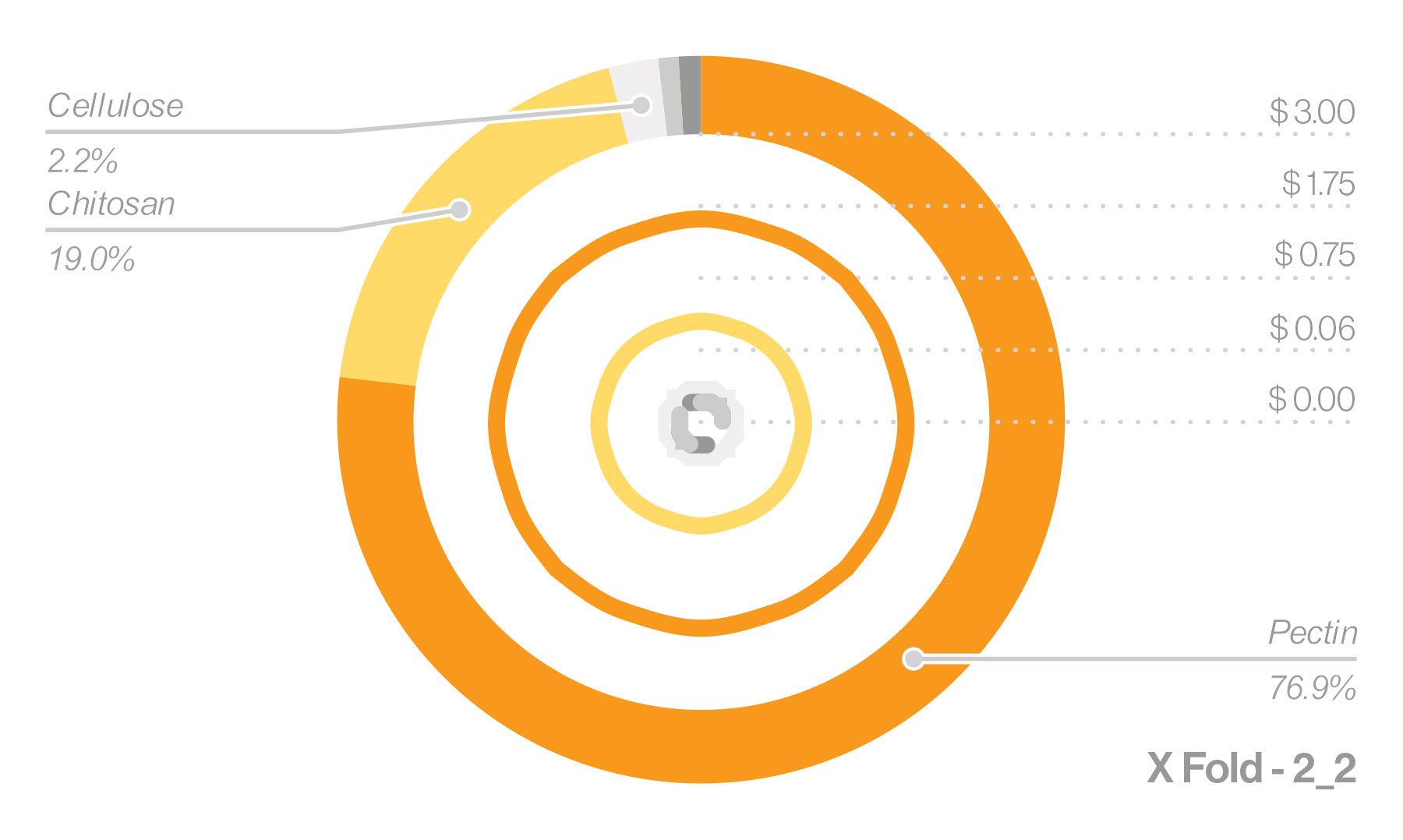

Figure IV: Composite pie chart circle diagram comparing ingredient volume and cost of materials for each single material print (7 swatch types).
![](https://freight.cargo.site/t/original/i/fc667f6e58f35d0bd9a8d0439673cc7d58cf2e7bad9b884e29c56ef7beba20fc/200413_Layered-Print---Bar-Chart_Material-Cartridge_4-37.jpg)
![](https://freight.cargo.site/t/original/i/97b793fd03ecc6c7f582d770a01fa4a23eab9aa67bd58a2839c52ba16eb4c2c0/200413_Layered-Print---Bar-Chart_Material-Cartridge_4-38.jpg)
![](https://freight.cargo.site/t/original/i/3e6531cc50d5771fd75fbac966ecc0b61e29256b69b42bf1791e90e2ddcb8200/200413_Layered-Print---Bar-Chart_Material-Cartridge_4-39.jpg)
![](https://freight.cargo.site/t/original/i/931ecdafed86e815e77383a1df7fbb33eb9aac957580472fe29452af0040987d/200413_Layered-Print---Bar-Chart_Material-Cartridge_4-40.jpg)
![](https://freight.cargo.site/t/original/i/735b31c86ed73d0b94d5f9e8ce445bc05b564c8a26cad492943c90f1d2f00ef7/200413_Layered-Print---Bar-Chart_Material-Cartridge_4-41.jpg)
![](https://freight.cargo.site/t/original/i/c52206ff55521710a7f7e855b01b6dc6adab322e8a1c389b9a9949329b26e670/200413_Layered-Print---Bar-Chart_Material-Cartridge_4-42.jpg)
![](https://freight.cargo.site/t/original/i/0d6d8c8eda21e36125cdf468ef361816281f4305988ec0f0fb3c2d02bd82587c/200413_Layered-Print---Bar-Chart_Material-Cartridge_4-43.jpg)

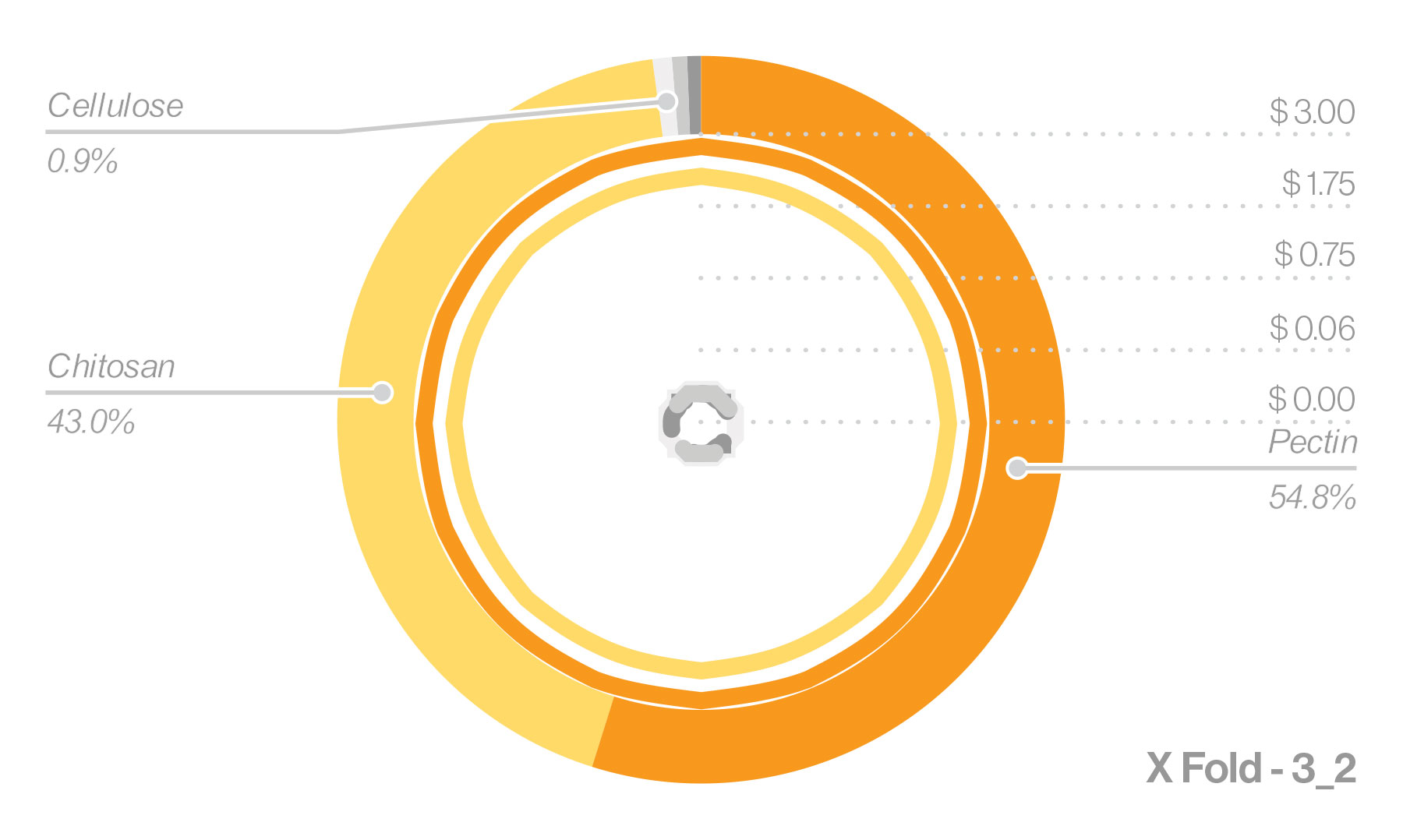

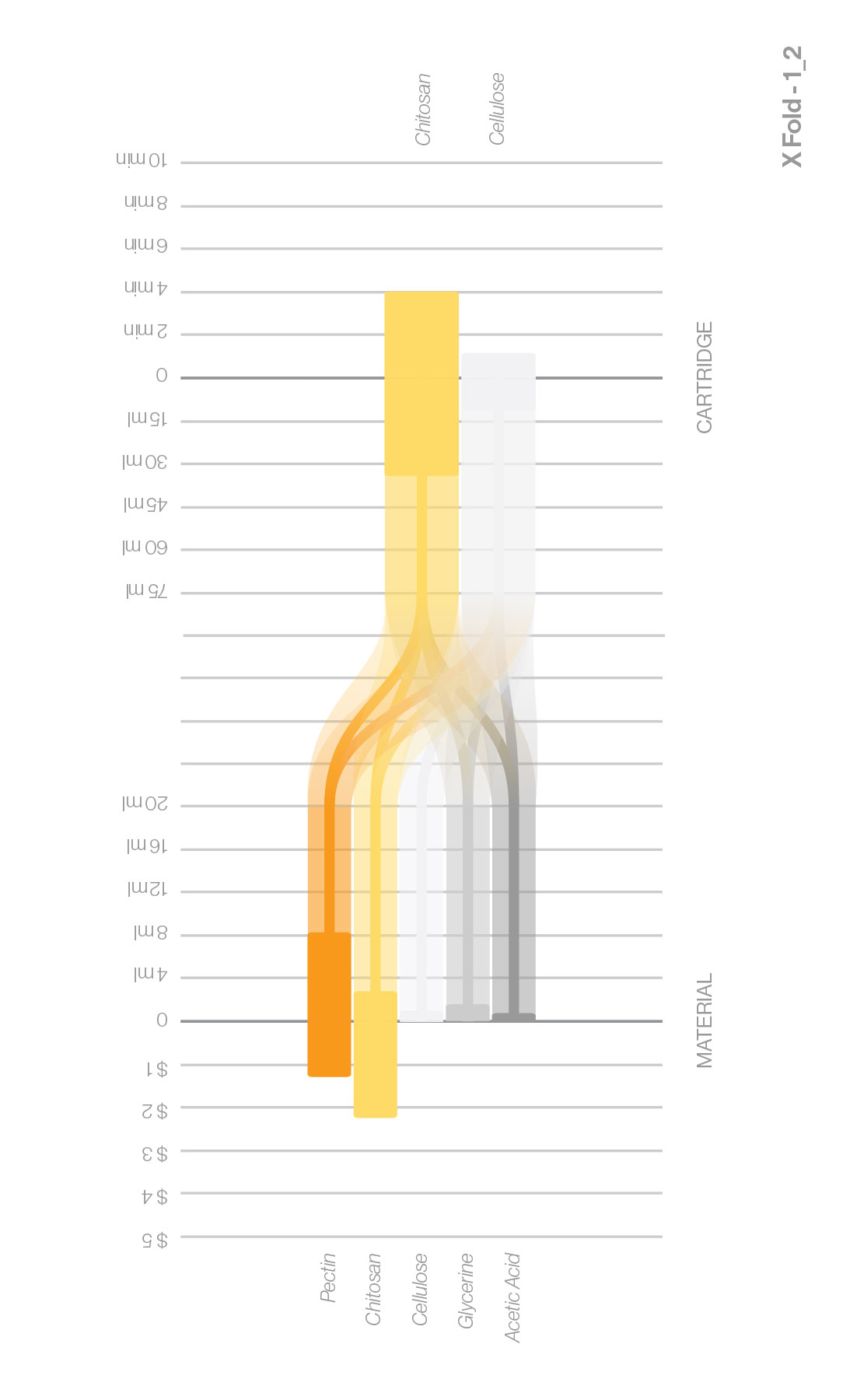

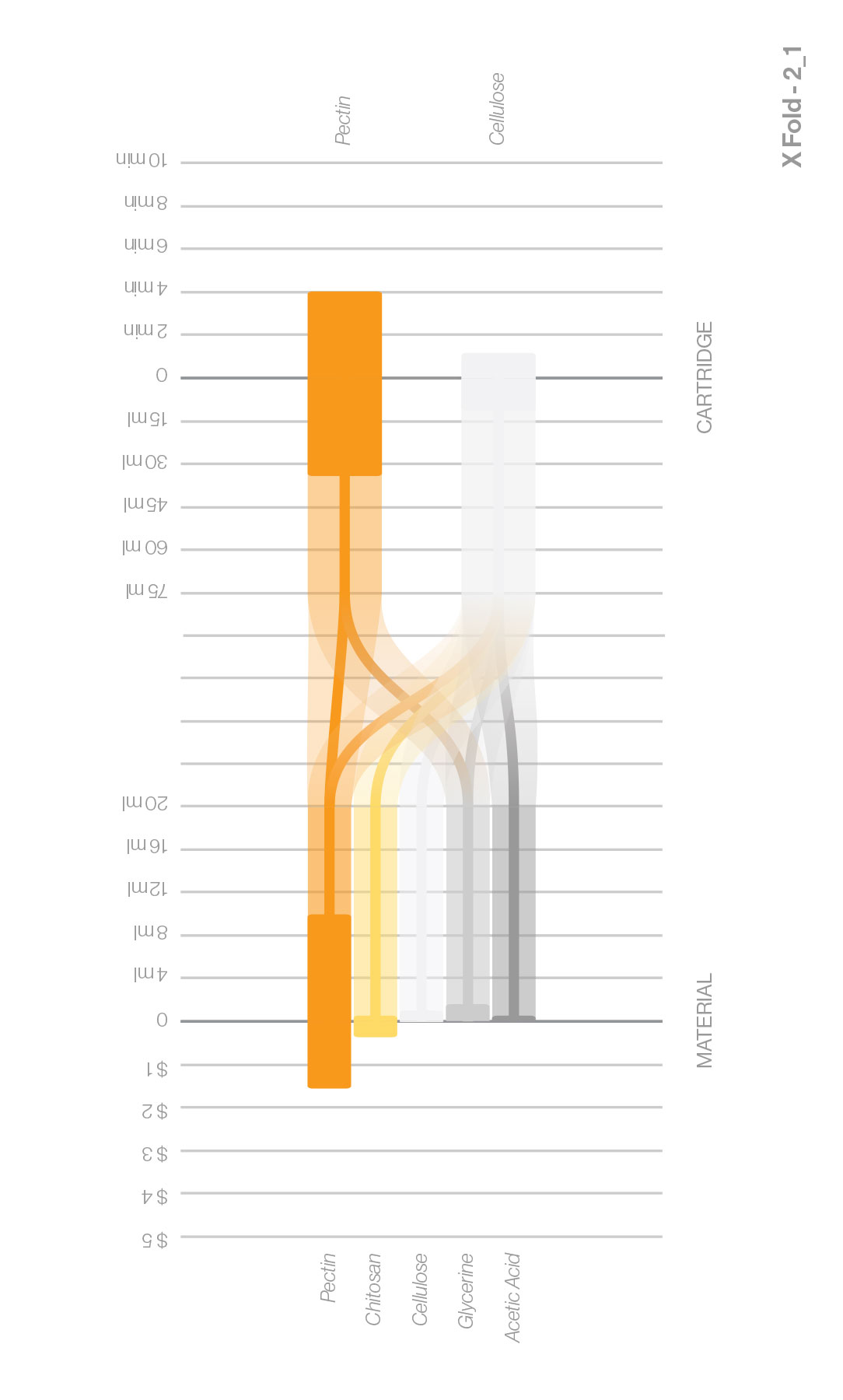

Figure V: Diagram comparing volume of material, print duration, and cost for different biopolymer formulas used in each print in the series of 7 swatch types.
+

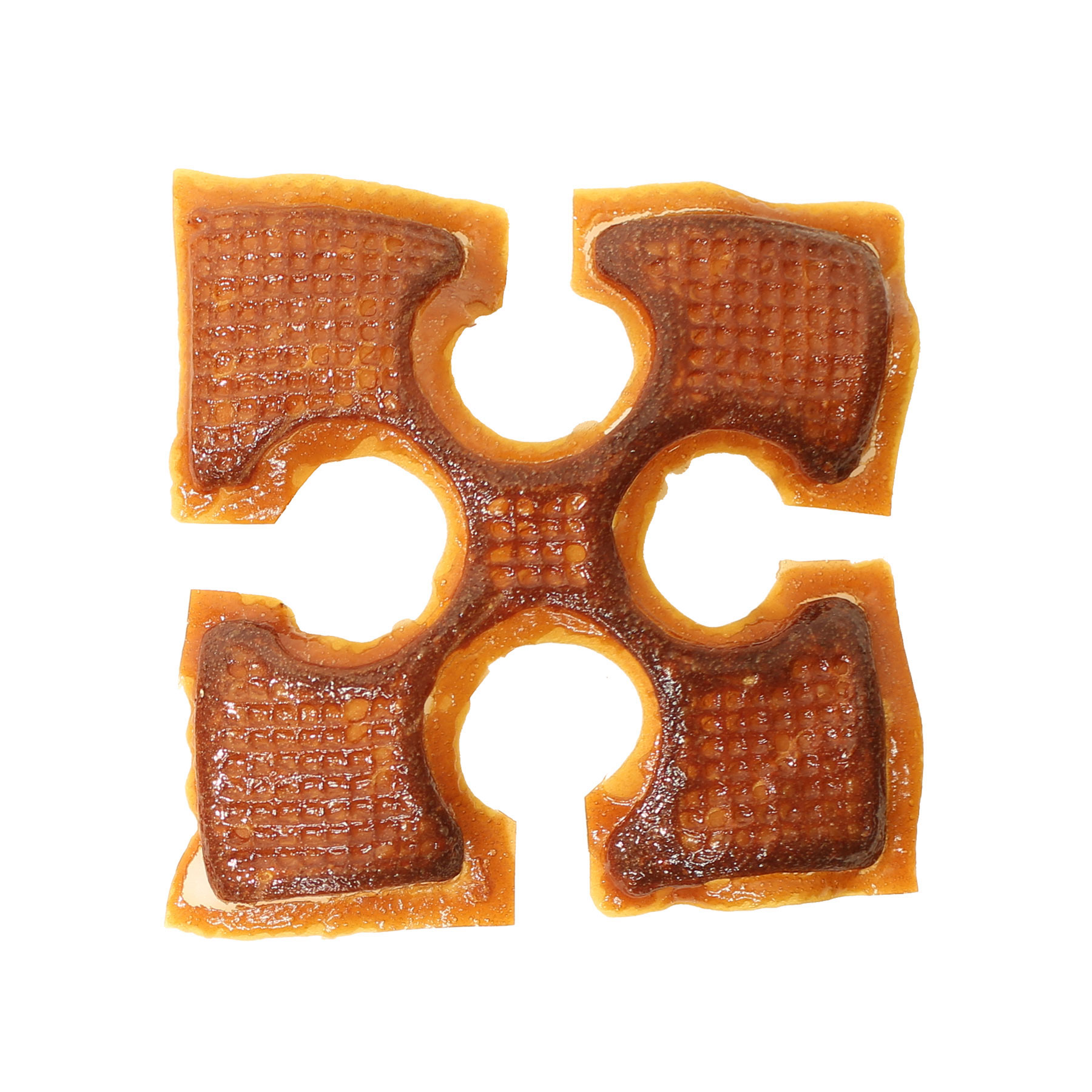

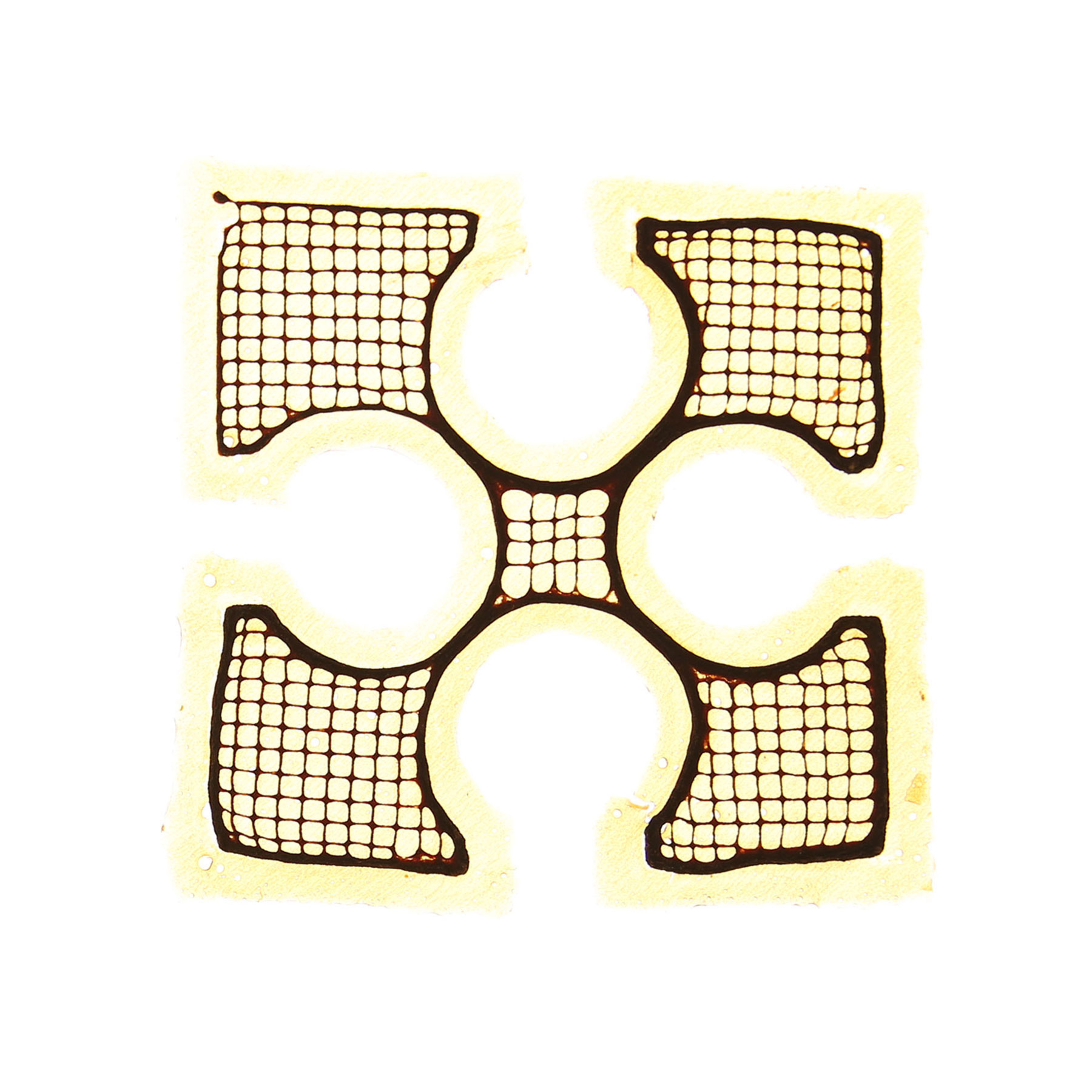

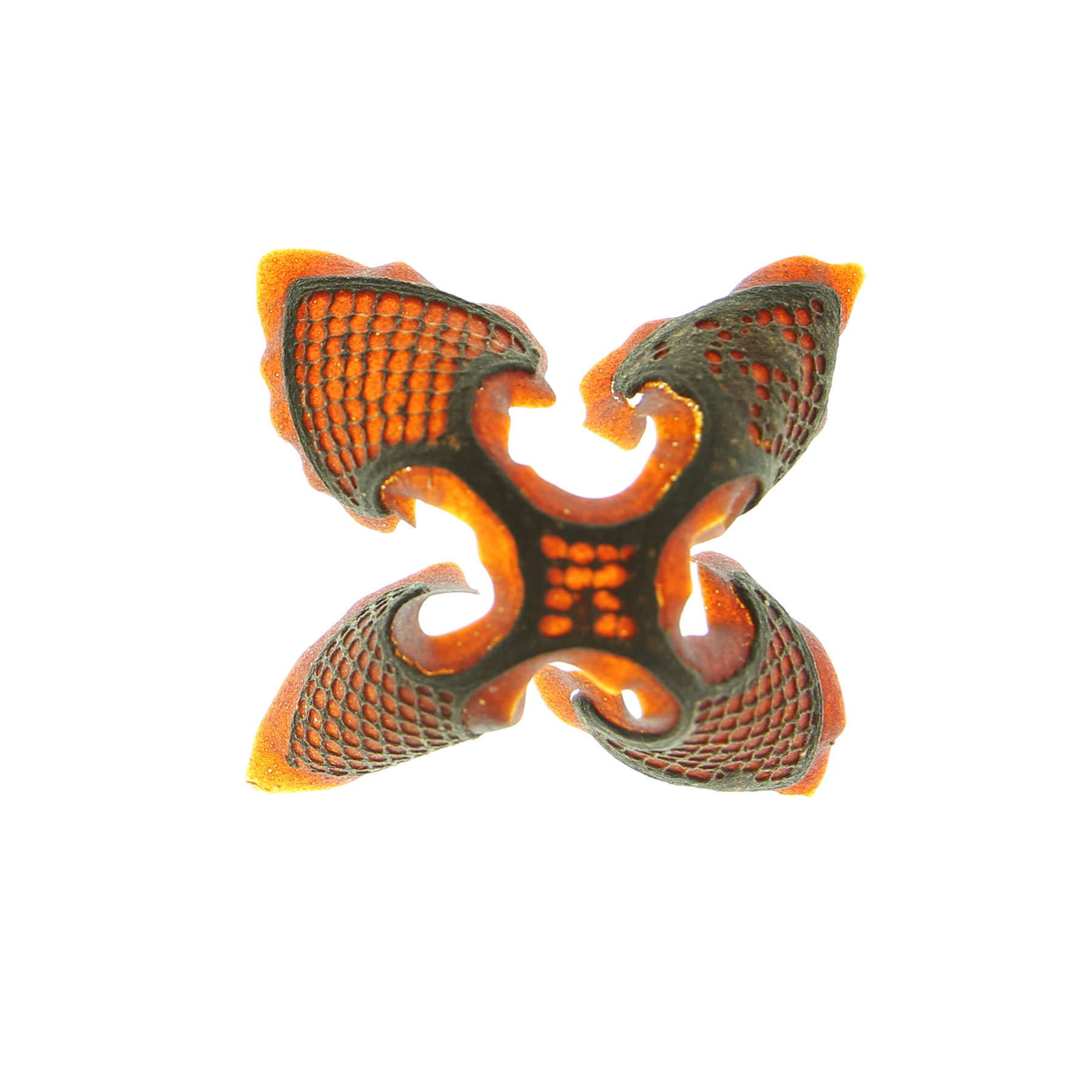

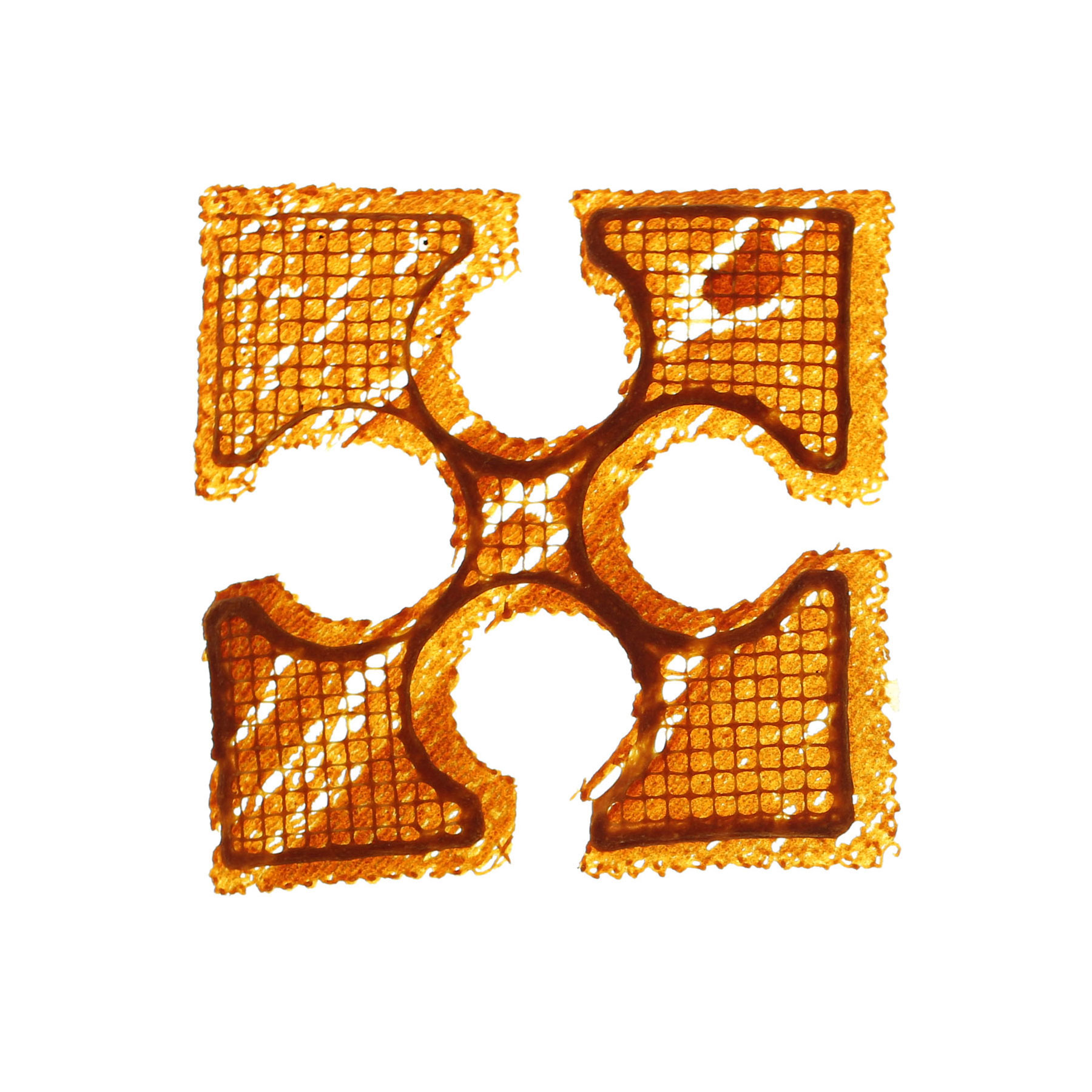

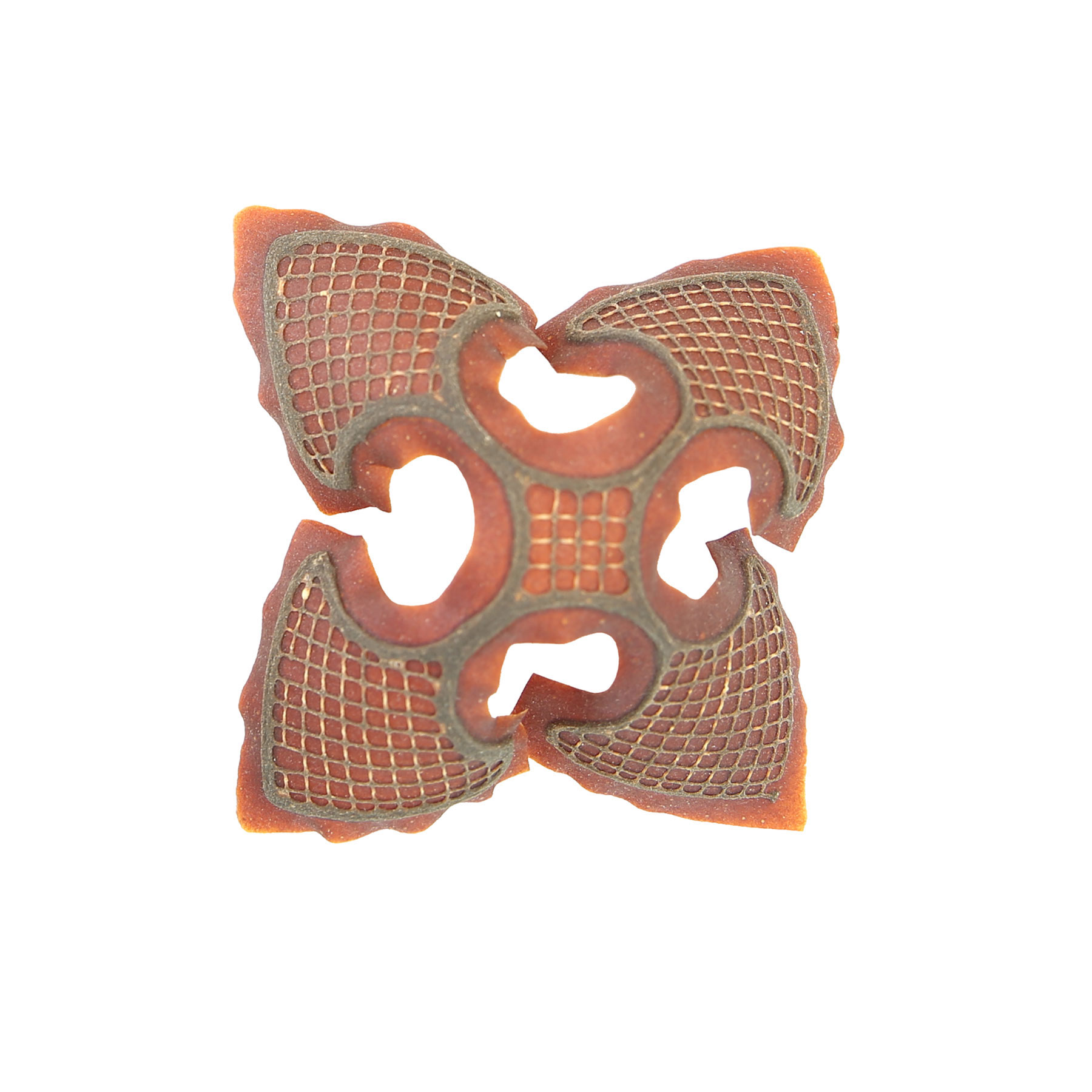

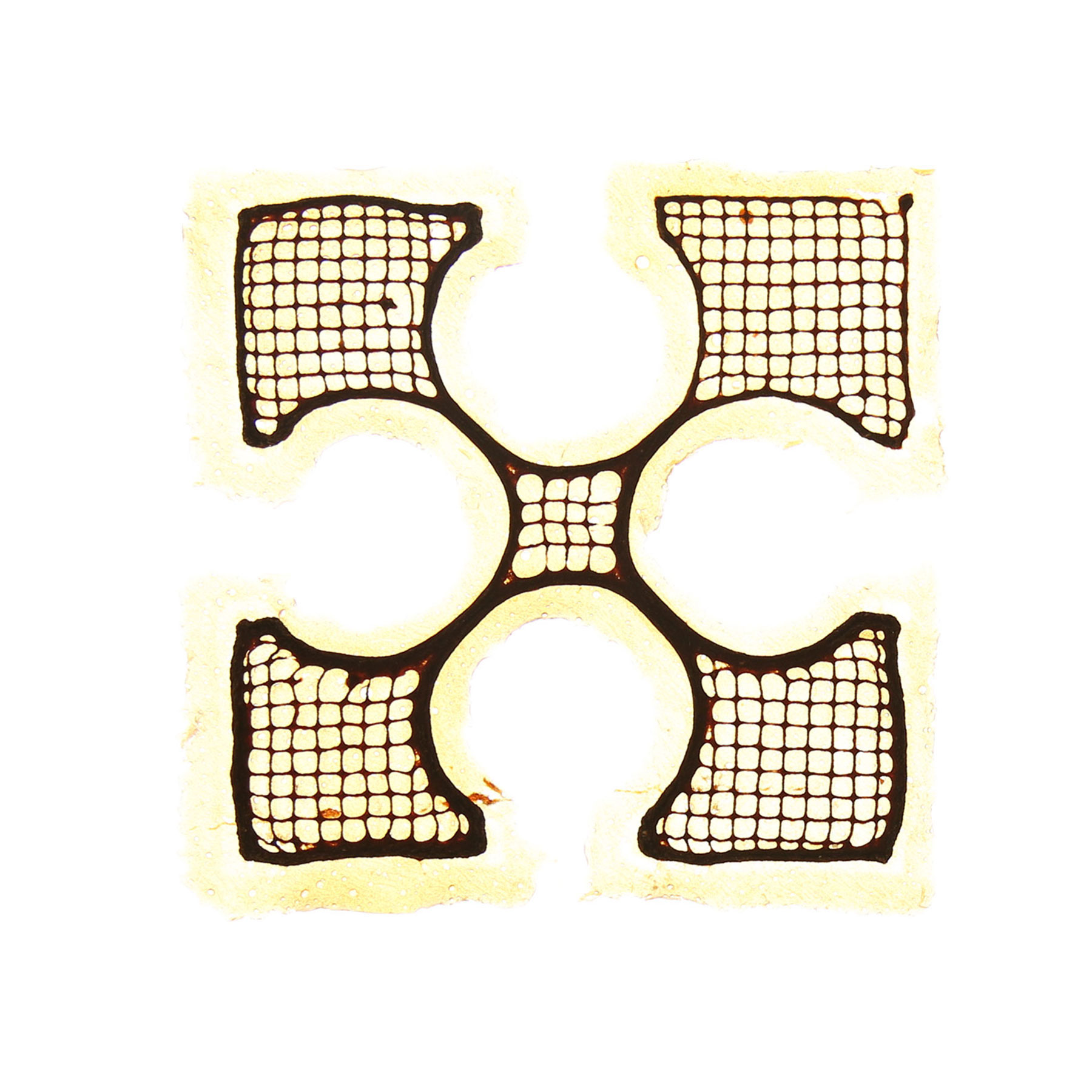

X Swatch

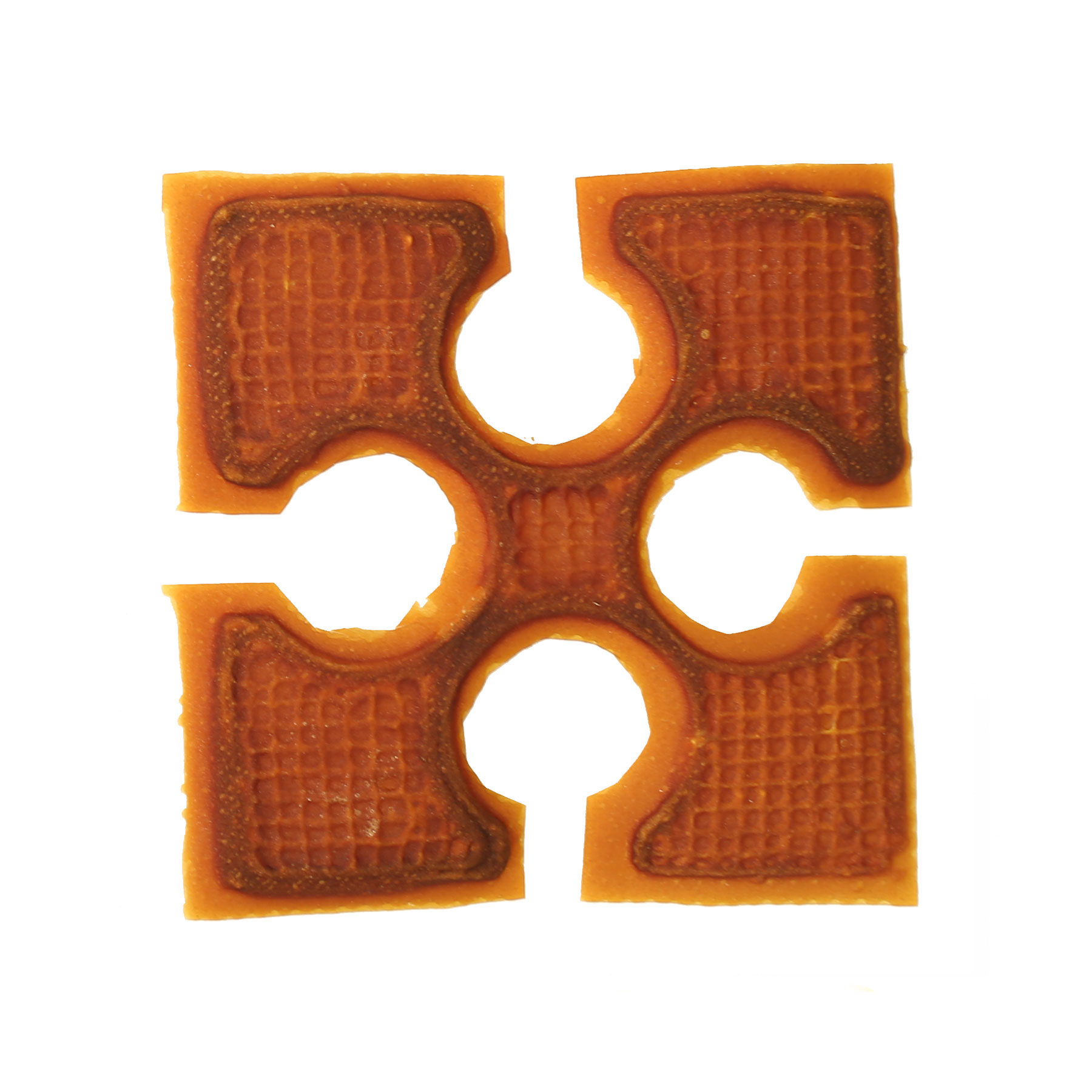

These experiments examine how different material formulas, print orders and toolpaths can affect deformation over time. Each material formula is printed with a base layer of pectin in a 5 ½” cross shaped swatch with a parallel infill toolpath. A layer of cellulose hydrogels is printed with variable density lattice patterns. In select swatches a 3rd layer of pectin hydrogel is printed either on top or below the cellulose layer. The breaks in the geometry of the X shape are intended to allow the surfaces to exhibit greater shape change over time. The collection of different swatches is then exposed to air.
- Exposure to air is recorded during the first month and at 12 months.

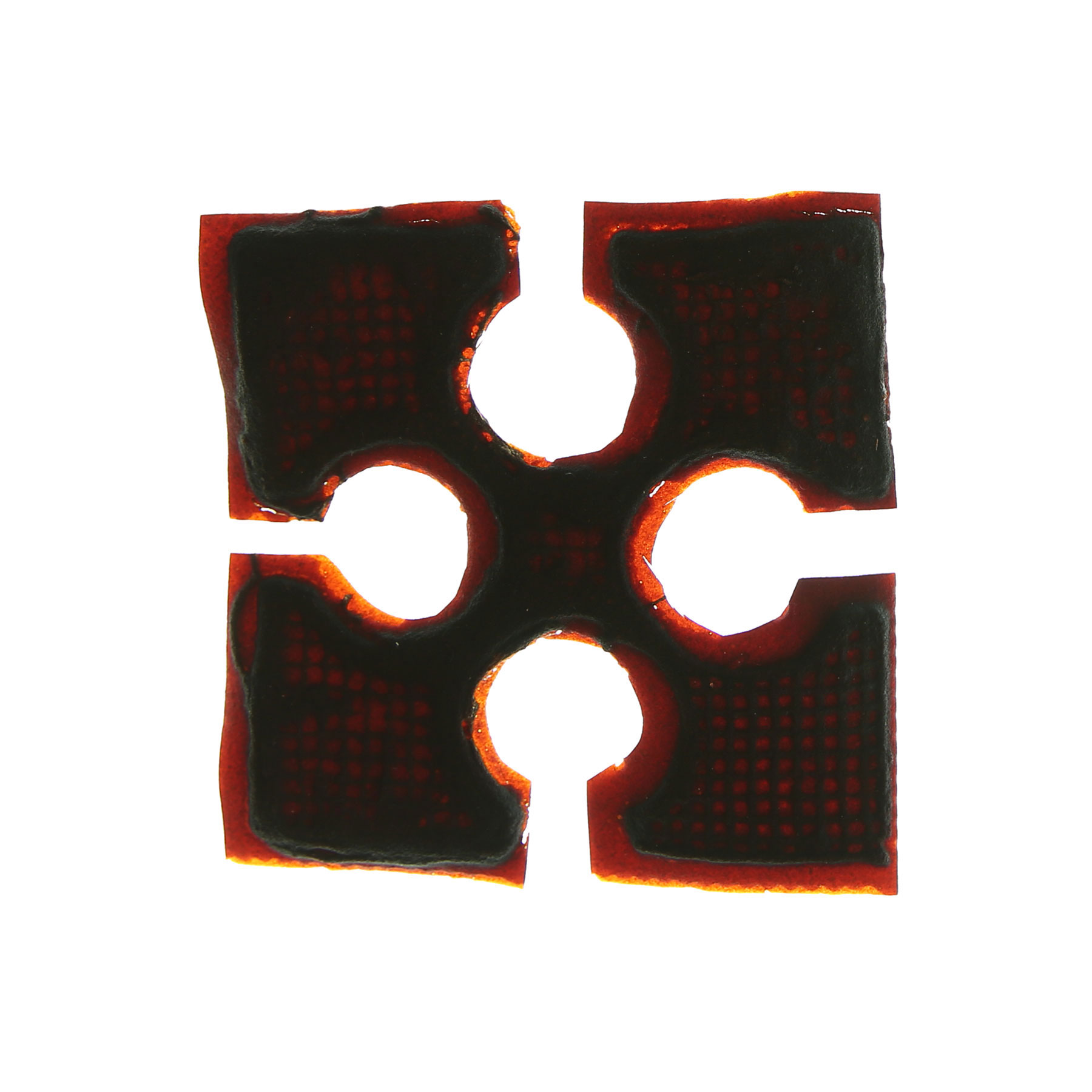

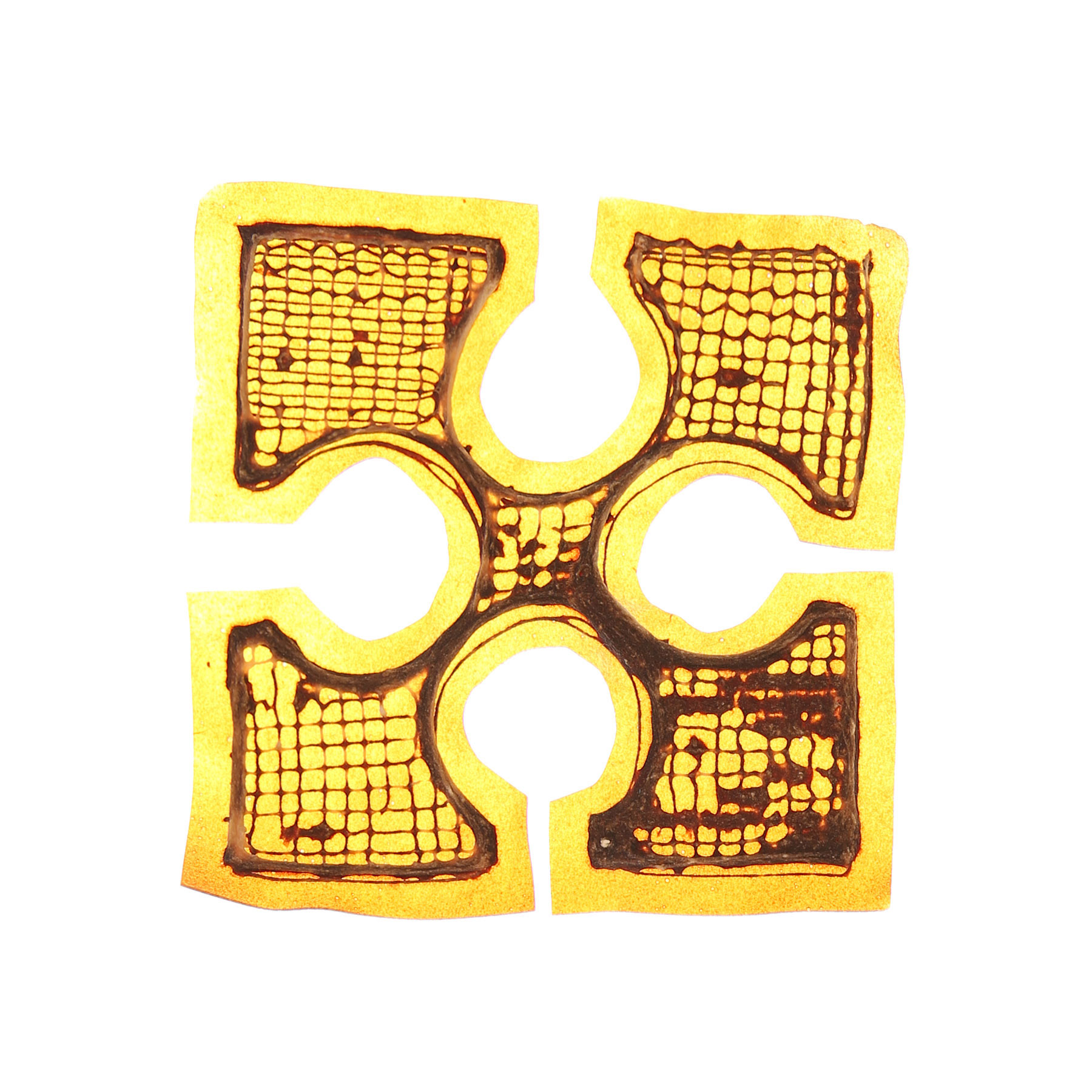

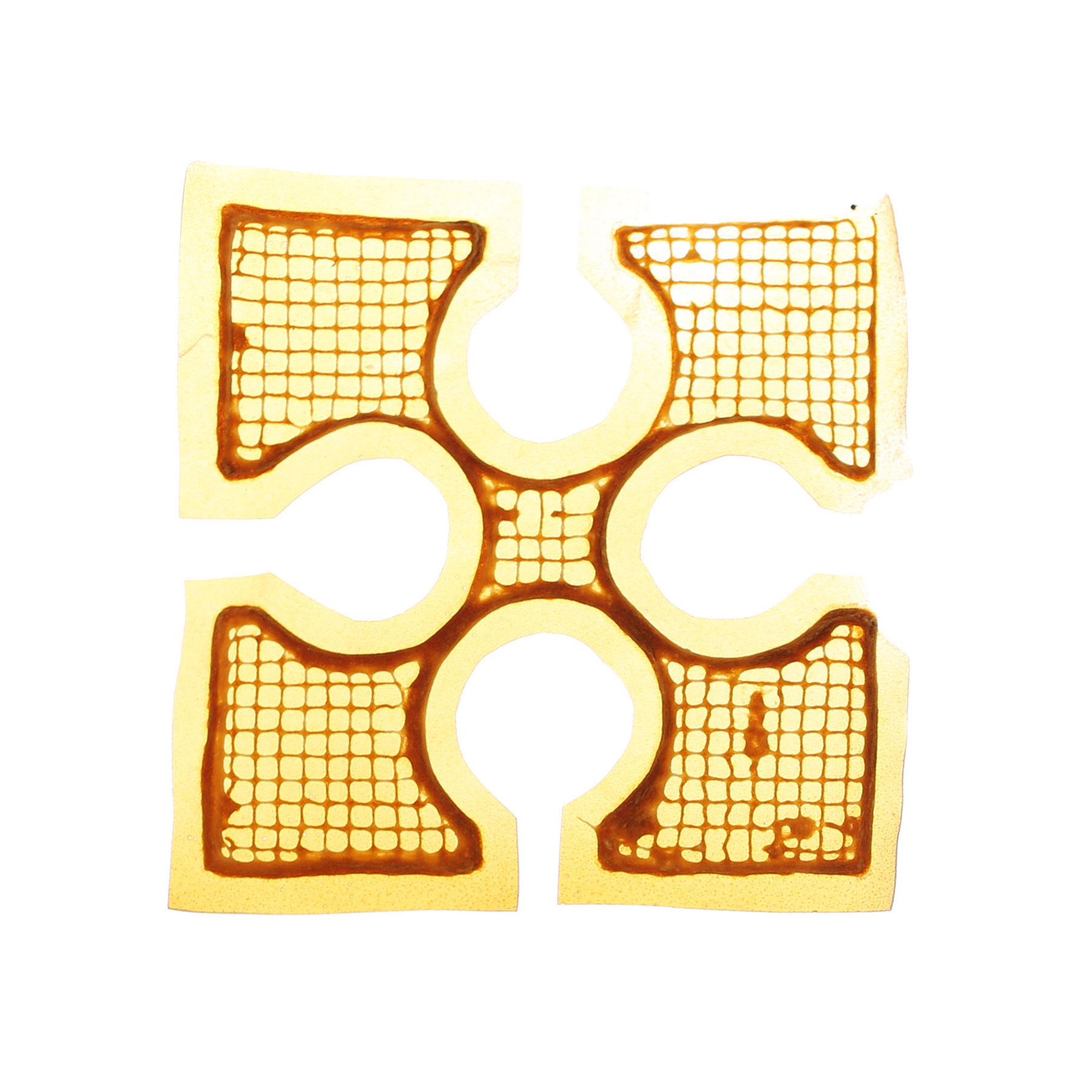

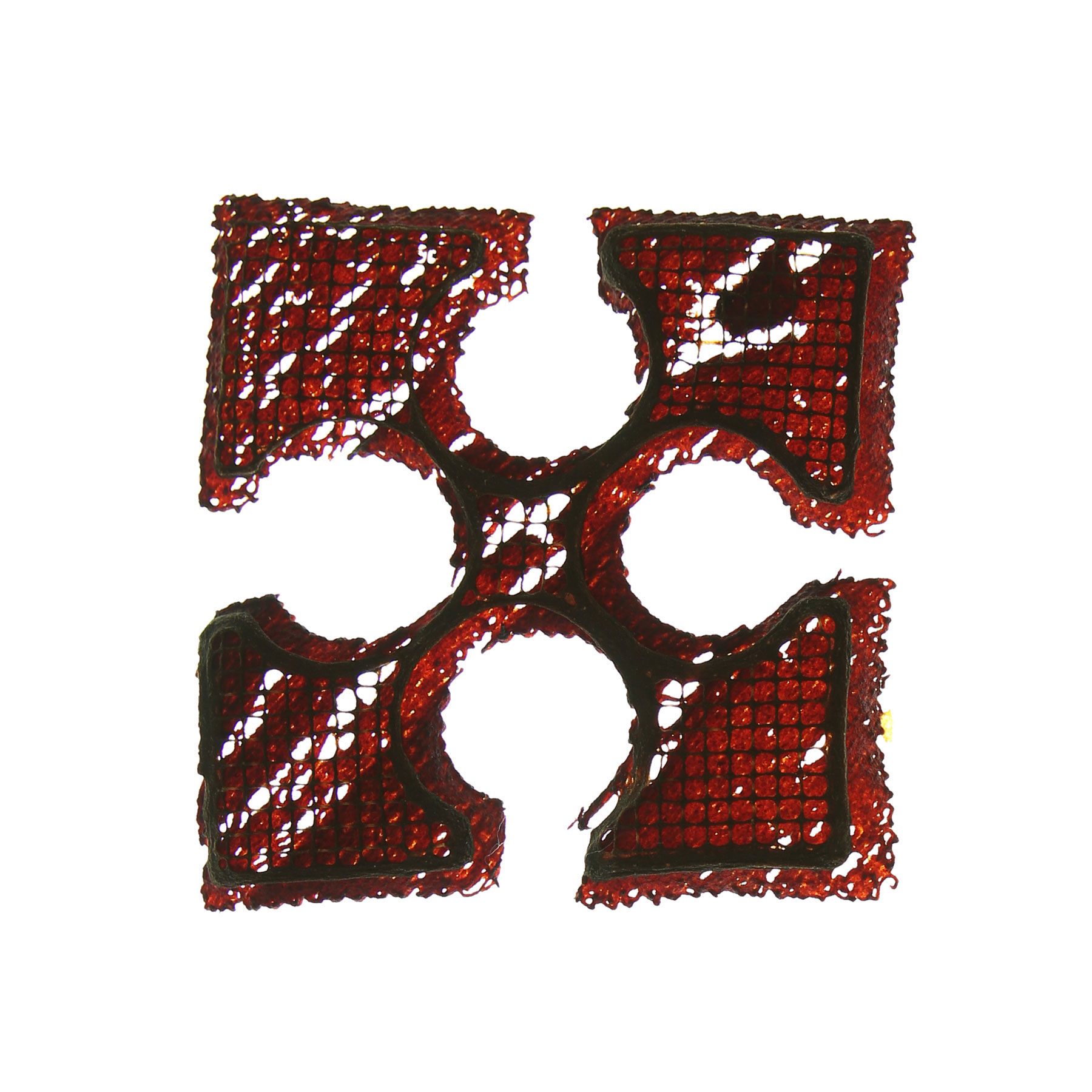

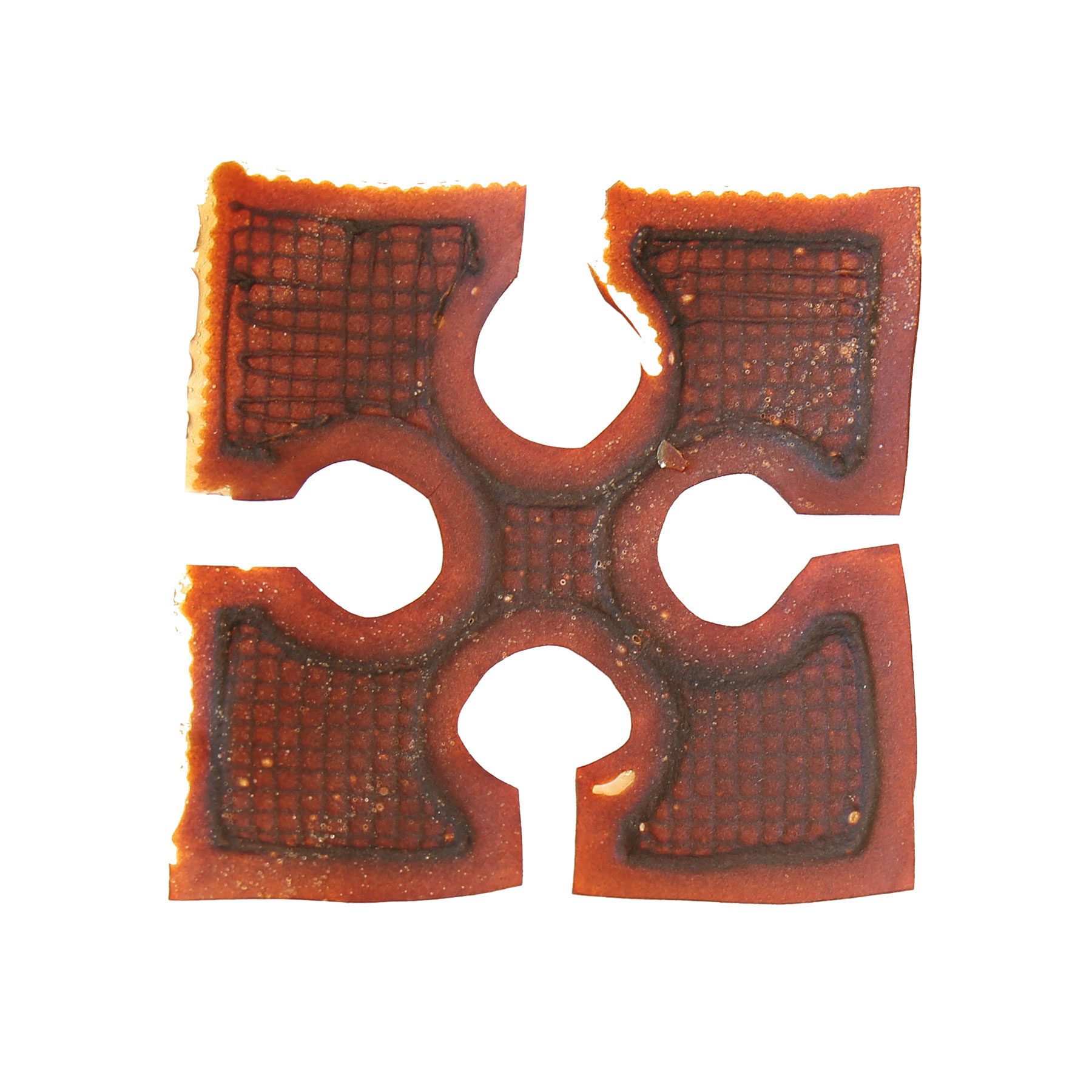

- Swatches are imaged with and without backlighting in plan and side view.
- Changes in color and shape are visible.
6 different sets of 4 swatches are tested that control for the same toolpaths but vary the material formula and print order.
- Pectin layer + Cellulose layer: Minimal shape and color change
- Pectin Chitosan layer + Cellulose layer: Moderate shape and color change
- Pectin Chitosan Acetic Acid layer + Cellulose layer: Minimal shape and dramatic color change
- Pectin layer + Cellulose layer + Pectin Chitosan layer: Dramatic shape and color change
- Pectin Chitosan layer + Cellulose layer + Pectin layer: Dramatic shape and color change - Pectin Chitosan layer + Cellulose layer + Pectin Chitosan layer: Dramatic shape and color change
- Exposure to air is recorded during the first month and at 12 months.
- Swatches are imaged with and without backlighting in plan and side view.
- Changes in color and shape are visible.
6 different sets of 4 swatches are tested that control for the same toolpaths but vary the material formula and print order.
- Pectin layer + Cellulose layer: Minimal shape and color change
- Pectin Chitosan layer + Cellulose layer: Moderate shape and color change
- Pectin Chitosan Acetic Acid layer + Cellulose layer: Minimal shape and dramatic color change
- Pectin layer + Cellulose layer + Pectin Chitosan layer: Dramatic shape and color change
- Pectin Chitosan layer + Cellulose layer + Pectin layer: Dramatic shape and color change - Pectin Chitosan layer + Cellulose layer + Pectin Chitosan layer: Dramatic shape and color change
